Shallow Groove Inserts (GER/L-C)

Shallow Groove Inserts (GER/L-C)

Precision grinding for high dimensional accuracy
Sharp rake angle, cutting lightly
Blade width tolerance control soil 0.025mm
Groove width range 0.5~5.0mm
Mainly used for inner hole and small hole grooving
Contact Us
  • Shallow Groove Inserts (GER/L-C)
Description
Inquiry

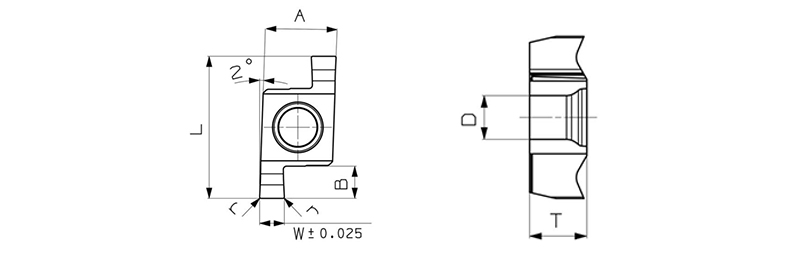

Blade Model Basic Size (mm) PVD Coating CVD Coating
Blade Width W Depth Of Cut B Arc r RP9125B RP9125C RP1020 RC6125
R L R L R L R L
GER/L100-005C 1.0 2.5 0.05 ● ○
GER/L120-005C 1.2 2.5 0.05 ○
GER/L125-005C 1.25 2.5 0.05 ●
GER/L140-010C 1.4 2.5 0.1 ○
GER/L145-010C 1.45 2.5 0.1 ○
GER/L150-010C 1.5 2.5 0.1 ● ○
GER/L160-010C 1.6 2.5 0.1 ○
GER/L170-010C 1.7 2.5 0.1 ○
GER/L185-010C 1.85 2.5 0.1 ○
GER/L195-010C 1.95 2.5 0.1 ○
GER/L200-010C 2.0 2.5 0.1 ● ○
GER/L225-010C 2.25 2.5 0.1 ○
GER/L250-020C 2.5 2.5 0.2 ● ○
GER/L275-020C 2.75 2.5 0.2 ●
GER/L280-020C 2.8 2.5 0.2 ○
GER/L300-020C 3.0 2.5 0.2 ●
GER/L320-020C 3.2 2.5 0.2 ○
GER/L350-020C 3.5 2.5 0.2 ○
● Standing Stock (Main Push) ○ Non-Stock Stock ★ Special Width And Arc Angle Can Be Customized
