Shallow Groove Insert (GER/L-A)

Shallow Groove Insert (GER/L-A)

Precision grinding for high dimensional accuracy
Sharp rake angle, cutting lightly
Blade width tolerance control soil 0.025mm
Groove width range 0.5~5.0mm
Mainly used for inner hole and small hole grooving
Contact Us
  • Shallow Groove Insert (GER/L-A)
Description
Inquiry

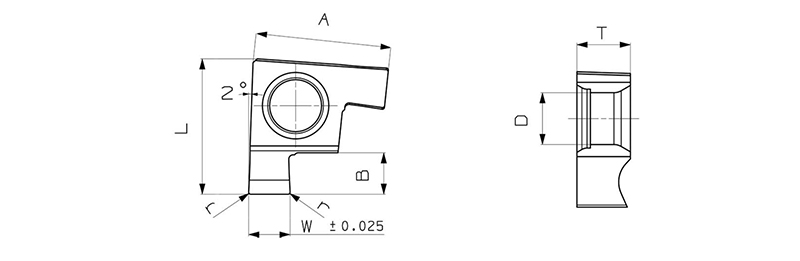

Blade Model Basic Size (mm) PVD Coating CVD Coating
Blade Width W Depth Of Cut B Arc r RP9125B RP9125C RP1020 RC6125
R L R L R L R L
GER/L050-005A 0.5 1.2 0.05 ● ○
GER/L060-005A 0.6 1.2 0.05 ○
GER/L070-005A 0.7 1.2 0.05 ○
GER/L080-005A 0.8 1.2 0.05 ○
GER/L100-005A 1.0 1.5 0.05 ● ○
GER/L120-005A 1.2 1.5 0.05 ○
GER/L125-005A 1.25 1.5 0.05 ●
GER/L140-010A 1.4 1.5 0.1 ○
GER/L150-010A 1.5 1.5 0.1 ● ○
GER/L180-010A 1.8 1.5 0.1 ○
GER/L200-010A 2.0 1.5 0.1 ● ○
● Standing Stock (Main Push) ○ Non-Stock Stock ★ Special Width And Arc Angle Can Be Customized
