Shallow Groove Insert (GBA)

Shallow Groove Insert (GBA)

High-precision grinding blade, high precision machining of groove bottom
Suitable for large depth of cut, high strength processing
Large ∪ type chip removal groove, smooth chip removal
Blade width tolerance control soil 0.025mm
Groove width range 1.25~4.5mm
Contact Us
  • Shallow Groove Insert (GBA)
Description
Inquiry

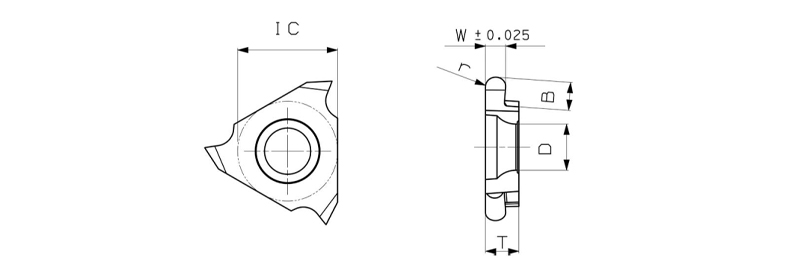

Blade Model Basic Size (mm) PVD Coating CVD Coating
Blade Width W Depth Of Cut B Arc r RP9125B RP9125C RP1020 RC6125
R L R L R L R L
GBA43R/L125-020 1.25 2.0 0.2 ● ○
GBA43R/L140-020 1.4 3.5 0.2 ○
GBA43R/L145-020 1.45 3.5 0.2 ○
GBA43R/L150-020 1.5 3.5 0.2 ● ○
GBA43R/L170-020 1.7 3.5 0.2
GBA43R/L175-020 1.75 3.5 0.2 ● ○
GBA43R/L185-020 1.85 3.5 0.2 ○
GBA43R/L195-020 1.95 3.5 0.2 ○
GBA43R/L200-020 2.0 .35 0.2 ● ○
GBA43R/L225-020 2.25 3.5 0.2 ○
GBA43R/L230-020 2.3 3.5 0.2 ○
GBA43R/L250-030S 2.5 4.0 0.3
GBA43R/L250-030 2.5 5.0 0.3 ○ ○
GBA43R/L265-030S 2.65 4.0 0.3
GBA43R/L265-030 2.65 5.0 0.3 ○
GBA43R/L280-030S 2.8 4.0 0.3
GBA43R/L280-030 2.8 5.0 0.3 ○
GBA43R/L300-030S 3.0 4.0 0.3
GBA43R/L300-030 3.0 5.0 0.3 ● ○
GBA43R/L325-030S 3.25 4.0 0.3
GBA43R/L325-030 3.25 5.0 0.3 ○
GBA43R/L330-030S 3.3 4.0 0.3
GBA43R/L330-030 3.3 5.0 0.3 ●
GBA43R/L350-030 3.5 5.0 0.3 ● ○
GBA43R/L400-040 4.0 5.0 0.4 ● ○
GBA43R/L430-040 4.3 5.0 0.4 ○
GBA43R/L450-040 4.5 5.0 0.4 ○
● Standing Stock (Main Push) ○ Non-Stock Stock ★ Special Width And Arc Angle Can Be Customized
