Cut Off (MQMN)

Cut Off (MQMN)

●Using a special groove type, narrow chips can be obtained, and the chip breaking effect is better.
●The negative rake surface design of the insert ensures a stronger cutting edge, and the tool life is significantly improved.
●Recommended for cutting off alloy steel, cast iron, stainless steel and other materials.
Contact Us
  • Cut Off (MQMN)
Description
Inquiry

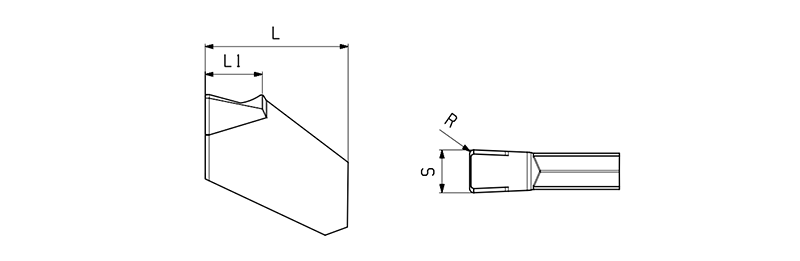

Blade Model Basic Size (mm) PVD Coating CVD Coating
L1 S R L RP9125B RP9125C RP1020 RC6125A
MQMN300 4.40 3.125 0.3 11
MQMN400 4.95 4.125 0.3 11 ○
MQMN500 5.00 5.125 0.3 11 ○
MQMN600 5.28 6.400 0.3 11 ○
● Standing Stock (Main Push) ○ Non-Stock Stock
