Home / Product / Threading Inserts / American Taper Piper Thread NPT Series / American Tapered Pipe Thread [NPT] Female Thread (IR-NPT)
Taizhou Ruian - Indexable hardmetal(carbide) inserts for cutting tools
Home / Product / Threading Inserts / American Taper Piper Thread NPT Series / American Tapered Pipe Thread [NPT] Female Thread (IR-NPT)
![American Tapered Pipe Thread [NPT] Female Thread (IR-NPT)](/tzruian/2022/12/30/ir-npt.png)

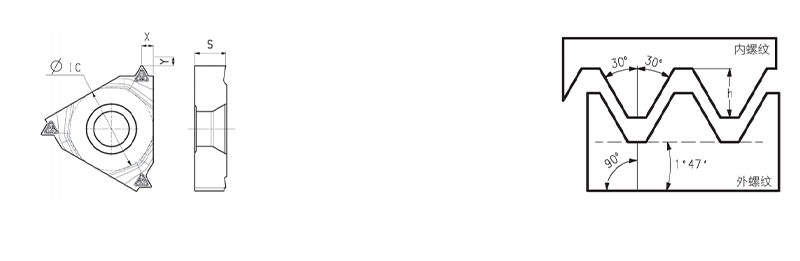

| Blade Model | Processing Pitch Range | Blade Size | Coating Grade | |||||||
| mm | Number Of Teeth / Inch | IC | S | x | Y | RP9125B | RP1020 | RP1120A | RP1225 | |
| 16IR8NPT | 8 | 9.525 | 3.52 | 1.8 | 1.3 | ● | ● | |||
| 16IR11.5NPT | 11.5 | 9.525 | 3.52 | 1.5 | 1.1 | ● | ● | |||
| 16IR14NPT | 14 | 9.525 | 3.52 | 1.2 | 0.9 | ● | ● | |||
| 16IR18NPT | 18 | 9.525 | 3.52 | 1.0 | 0.8 | ● | ● | |||
| 16IR27NPT | 27 | 9.525 | 3.52 | 0.8 | 0.7 | ● | ● | |||
● Standing Stock
