Home / Product / Hongrui Solid Carbide Tools / HR700 series for machining hardened steel superhard / HR700 Series for Machining Hardened Steel Superhard (4-flute R end mills)
Taizhou Ruian - Indexable hardmetal(carbide) inserts for cutting tools
Home / Product / Hongrui Solid Carbide Tools / HR700 series for machining hardened steel superhard / HR700 Series for Machining Hardened Steel Superhard (4-flute R end mills)

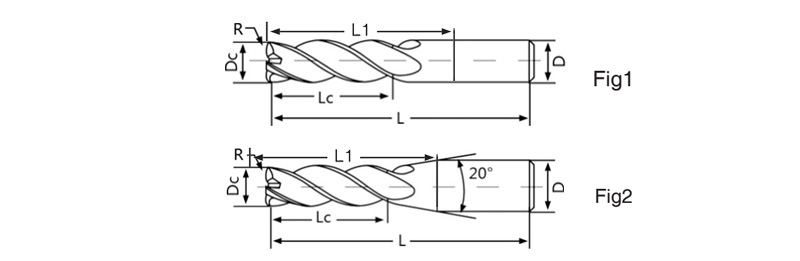

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | |||||
| Dc | R | Lc | L1 | D | L | ||||
| HR700 D3R0.2*6*9mm*50L*D4*4T | 3 | 0.2 | 6 | 9 | 4 | 50 | 4 | Fig2 | ● |
| HR700 D3R0.5*6*9mm*50L*D4*4T | 3 | 0.5 | 6 | 9 | 4 | 50 | 4 | Fig2 | ● |
| HR700 D4R0.2*8*12mm*50L*D4*4T | 4 | 0.2 | 8 | 12 | 4 | 50 | 4 | Fig1 | ● |
| HR700 D4R0.5*8*12mm*50L*D4*4T | 4 | 0.5 | 8 | 12 | 4 | 50 | 4 | Fig1 | ● |
| HR700 D4R1*8*12mm*50L*D4*4T | 4 | 1 | 8 | 12 | 4 | 50 | 4 | Fig1 | ● |
| HR700 D5R0.5*10*15mm*50L*D6*4T | 5 | 0.5 | 10 | 15 | 6 | 50 | 4 | Fig2 | ● |
| HR700 D5R1*10*15mm*50L*D6*4T | 5 | 1 | 10 | 15 | 6 | 50 | 4 | Fig2 | ● |
| HR700 D5R1.5*10*15mm*50L*D6*4T | 5 | 1.5 | 10 | 15 | 6 | 50 | 4 | Fig2 | ● |
| HR700 D6R0.5*12*18mm*50L*D6*4T | 6 | 0.5 | 12 | 18 | 6 | 50 | 4 | Fig1 | ● |
| HR700 D6R1*12*18mm*50L*D6*4T | 6 | 1 | 12 | 18 | 6 | 50 | 4 | Fig1 | ● |
| HR700 D6R1.5*12*18mm*50L*D6*4T | 6 | 1.5 | 12 | 18 | 6 | 50 | 4 | Fig1 | ● |
| HR700 D8R0.5*16*24mm*60L*D8*4T | 8 | 0.5 | 16 | 24 | 8 | 60 | 4 | Fig1 | ● |
| HR700 D8R1*16*24mm*60L*D8*4T | 8 | 1 | 16 | 24 | 8 | 60 | 4 | Fig1 | ● |
| HR700 D8R1.5*16*24mm*60L*D8*4T | 8 | 1.5 | 16 | 24 | 8 | 60 | 4 | Fig1 | ● |
| HR700 D8R2*16*24mm*60L*D8*4T | 10 | 2 | 16 | 24 | 8 | 60 | 4 | Fig1 | ● |
| HR700 D10R0.5*20*30mm*75L*D10*4T | 10 | 0.5 | 20 | 30 | 10 | 75 | 4 | Fig1 | ● |
| HR700 D10R1*20*30mm*75L*D10*4T | 10 | 1 | 20 | 30 | 10 | 75 | 4 | Fig1 | ● |
| HR700 D10R1.5*20*30mm*75L*D10*4T | 10 | 1.5 | 20 | 30 | 10 | 75 | 4 | Fig1 | ● |
| HR700 D10R2*20*30mm*75L*D10*4T | 12 | 2 | 20 | 30 | 10 | 75 | 4 | Fig1 | ● |
| HR700 D12R0.5*24*36mm*75L*D12*4T | 12 | 0.5 | 24 | 36 | 12 | 75 | 4 | Fig1 | ● |
| HR700 D12R1*24*36mm*75L*D12*4T | 12 | 1 | 24 | 36 | 12 | 75 | 4 | Fig1 | ● |
| HR700 D12R1.5*24*36mm*75L*D12*4T | 12 | 1.5 | 24 | 36 | 12 | 75 | 4 | Fig1 | ● |
| HR700 D12R2*24*36mm*75L*D12*4T | 12 | 2 | 24 | 36 | 12 | 75 | 4 | Fig1 | ● |
