Taizhou Ruian - Indexable hardmetal(carbide) inserts for cutting tools
Home / Product / Hongrui Solid Carbide Tools / HP500 series for machining with high feed rate / HR700 Series for Machining Hardened Steel Superhard (4-flute flattened end mills)
Taizhou Ruian - Indexable hardmetal(carbide) inserts for cutting tools
Home / Product / Hongrui Solid Carbide Tools / HP500 series for machining with high feed rate / HR700 Series for Machining Hardened Steel Superhard (4-flute flattened end mills)

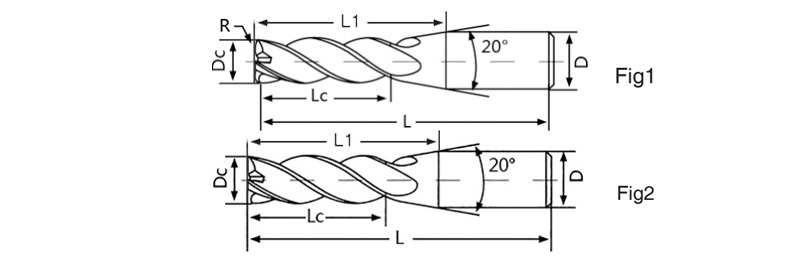

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | ||||
| Dc | Lc | L1 | D | L | ||||
| HR700 D1*3*3mm*50L*D4*4F | 1 | 3 | 3 | 4 | 50 | 4 | Fig2 | ● |
| HR700 D1.5*4.5*4.5mm*50L*D4*4F | 1.5 | 4.5 | 4.5 | 4 | 50 | 4 | Fig2 | ● |
| HR700 D2*6*6mm*50L*D4*4F | 2 | 6 | 6 | 4 | 50 | 4 | Fig2 | ● |
| HR700 D2.5*6*6mm*50L*D4*4F | 2.5 | 6 | 6 | 4 | 50 | 4 | Fig2 | ● |
| HR700 D3*8*8mm*50L*D4*4F | 3 | 8 | 8 | 4 | 50 | 4 | Fig2 | ● |
| HR700 D4*10*12mm*50L*D4*4F | 4 | 10 | 12 | 4 | 50 | 4 | Fig1 | ● |
| HR700 D5*15*18mm*50L*D6*4F | 5 | 15 | 18 | 6 | 50 | 4 | Fig2 | ● |
| HR700 D6*15*18mm*50L*D6*4F | 6 | 15 | 18 | 6 | 50 | 4 | Fig1 | ● |
| HR700 D8*20*24mm*60L*D8*4F | 8 | 20 | 24 | 8 | 60 | 4 | Fig1 | ● |
| HR700 D10*25*30mm*75L*D10*4F | 10 | 25 | 30 | 10 | 75 | 4 | Fig1 | ● |
| HR700 D12*30*36mm*75L*D12*4F | 12 | 30 | 36 | 12 | 75 | 4 | Fig1 | ● |
| HR700 D16*40*48mm*100L*D16*4F | 16 | 40 | 48 | 16 | 100 | 4 | Fig1 | ● |
| HR700 D20*50*50mm*100L*D20*4F | 20 | 50 | 50 | 20 | 100 | 4 | Fig1 | ● |
