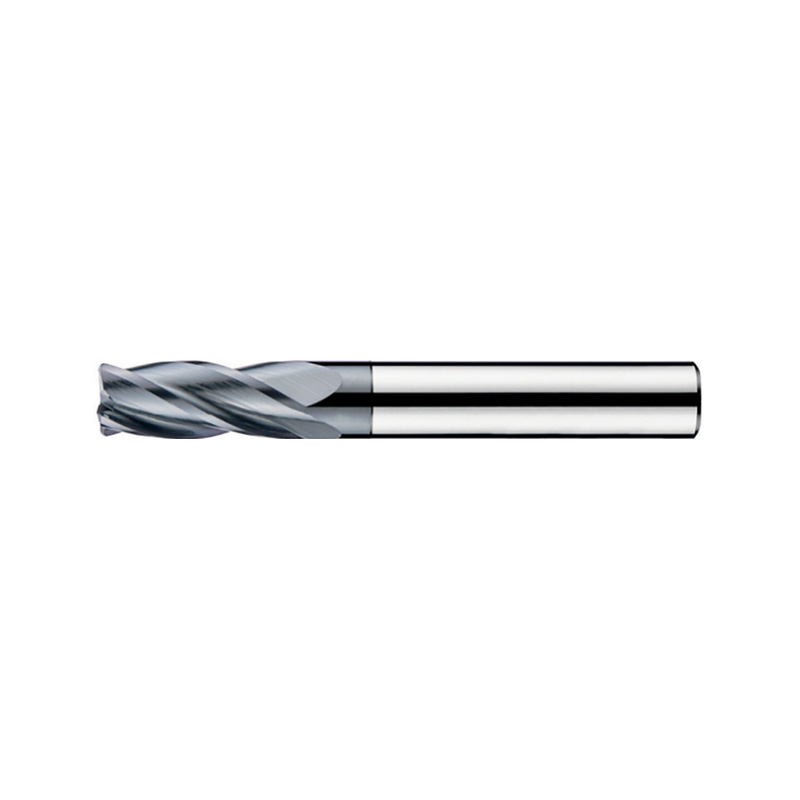

Home / Product / Hongrui Solid Carbide Tools / HMS series for machining hard-to-cut materials / HMS Series for Machining Hard-to-Cut Materials (4-flute R end mills with straight shank)

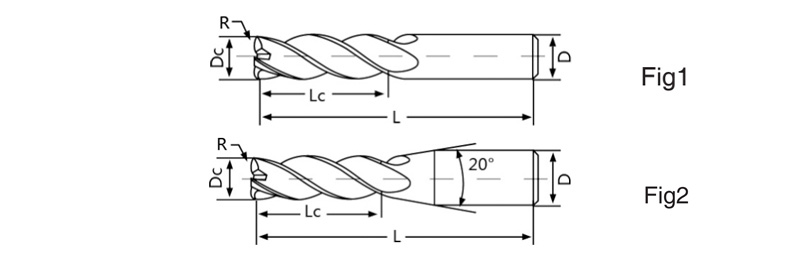

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | ||||
| R | Dc | Lc | D | L | ||||
| HMS-4R02002-D04 | 0.2 | 2 | 6 | 4 | 50 | 4 | Fig2 | ● |
| HMS-4R03003-D04 | 0.3 | 3 | 9 | 4 | 50 | 4 | Fig2 | ● |
| HMS-4R03005-D04 | 0.5 | 3 | 9 | 4 | 50 | 4 | Fig2 | ● |
| HMS-4R04003 | 0.3 | 4 | 11 | 4 | 50 | 4 | Fig1 | ● |
| HMS-4R04005 | 0.5 | 4 | 11 | 4 | 50 | 4 | Fig1 | ● |
| HMS-4R04002-D06 | 0.2 | 4 | 11 | 6 | 50 | 4 | Fig2 | ● |
| HMS-4R04003-D06 | 0.3 | 4 | 11 | 6 | 50 | 4 | Fig2 | ● |
| HMS-4R05005-D06 | 0.5 | 5 | 13 | 6 | 50 | 4 | Fig2 | ● |
| HMS-4R06005 | 0.5 | 6 | 16 | 6 | 50 | 4 | Fig1 | ● |
| HMS-4R06010 | 1 | 6 | 16 | 6 | 50 | 4 | Fig1 | ● |
| HMS-4R08005 | 0.5 | 8 | 20 | 8 | 60 | 4 | Fig1 | ● |
| HMS-4R08010 | 1 | 8 | 20 | 8 | 60 | 4 | Fig1 | ● |
| HMS-4R10005 | 0.5 | 10 | 25 | 10 | 75 | 4 | Fig1 | ● |
| HMS-4R10010 | 1 | 10 | 25 | 10 | 75 | 4 | Fig1 | ● |
| HMS-4R12005 | 0.5 | 12 | 30 | 12 | 75 | 4 | Fig1 | ● |
| HMS-4R12010 | 1 | 12 | 30 | 12 | 100 | 4 | Fig1 | ● |
| HMS-4R16010 | 1 | 16 | 36 | 16 | 100 | 4 | Fig1 | ● |
| HMS-4R20010 | 1 | 20 | 45 | 20 | 100 | 4 | Fig1 | ● |
