Taizhou Ruian - Indexable hardmetal(carbide) inserts for cutting tools

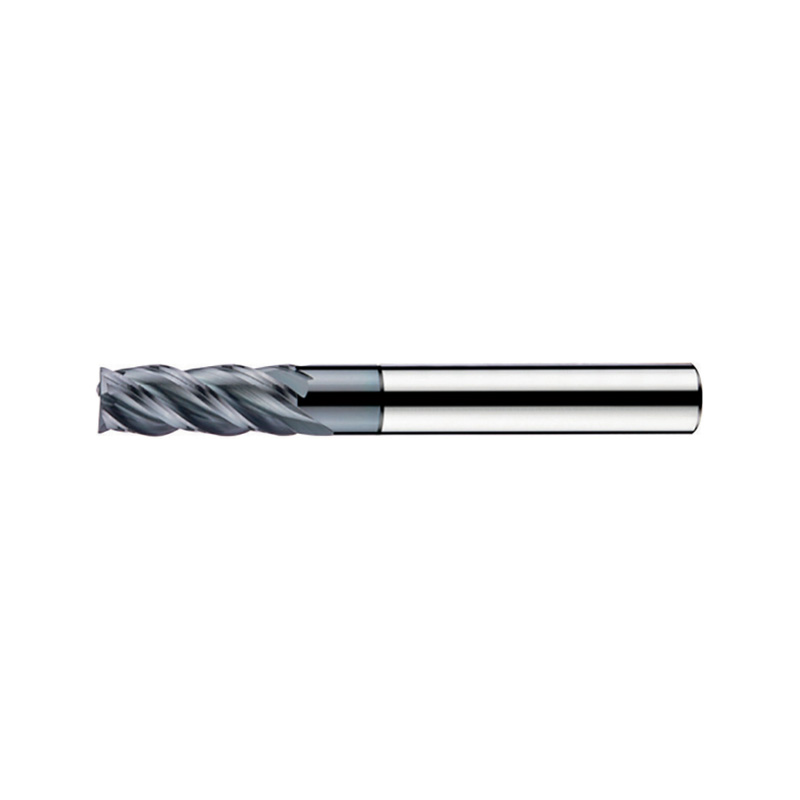

Home / Product / Hongrui Solid Carbide Tools / HMS series for machining hard-to-cut materials / HMS Series for Machining Hard-to-Cut Materials（4-flute flattened end mills with straight shank）

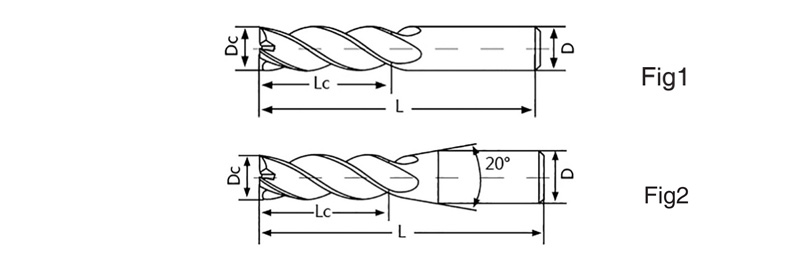

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | |||
| Dc | Lc | D | L | ||||
| HMS-4F010-D04 | 1 | 3 | 4 | 50 | 4 | Fig2 | ● |
| HMS-4F015-D04 | 1.5 | 4 | 4 | 50 | 4 | Fig2 | ● |
| HMS-4F020-D04 | 2 | 6 | 4 | 50 | 4 | Fig2 | ● |
| HMS-4F025-D04 | 2.5 | 8 | 4 | 50 | 4 | Fig2 | ● |
| HMS-4F030-D04 | 3 | 9 | 4 | 50 | 4 | Fig2 | ● |
| HMS-4F030-D06 | 3 | 8 | 6 | 50 | 4 | Fig2 | ● |
| HMS-4F035-D04 | 3.5 | 10 | 4 | 50 | 4 | Fig2 | ● |
| HMS-4F040 | 4 | 11 | 4 | 50 | 4 | Fig1 | ● |
| HMS-4F040-D06 | 4 | 11 | 6 | 50 | 4 | Fig2 | ● |
| HMS-4F050-D06 | 5 | 13 | 6 | 50 | 4 | Fig2 | ● |
| HMS-4F060 | 6 | 16 | 6 | 50 | 4 | Fig1 | ● |
| HMS-4F080 | 8 | 20 | 8 | 60 | 4 | Fig1 | ● |
| HMS-4F100 | 10 | 25 | 10 | 75 | 4 | Fig1 | ● |
| HMS-4F120 | 12 | 30 | 12 | 75 | 4 | Fig1 | ● |
| HMS-4F160 | 16 | 36 | 16 | 100 | 4 | Fig1 | ● |
| HMS-4F200 | 20 | 45 | 20 | 100 | 4 | Fig1 | ● |
