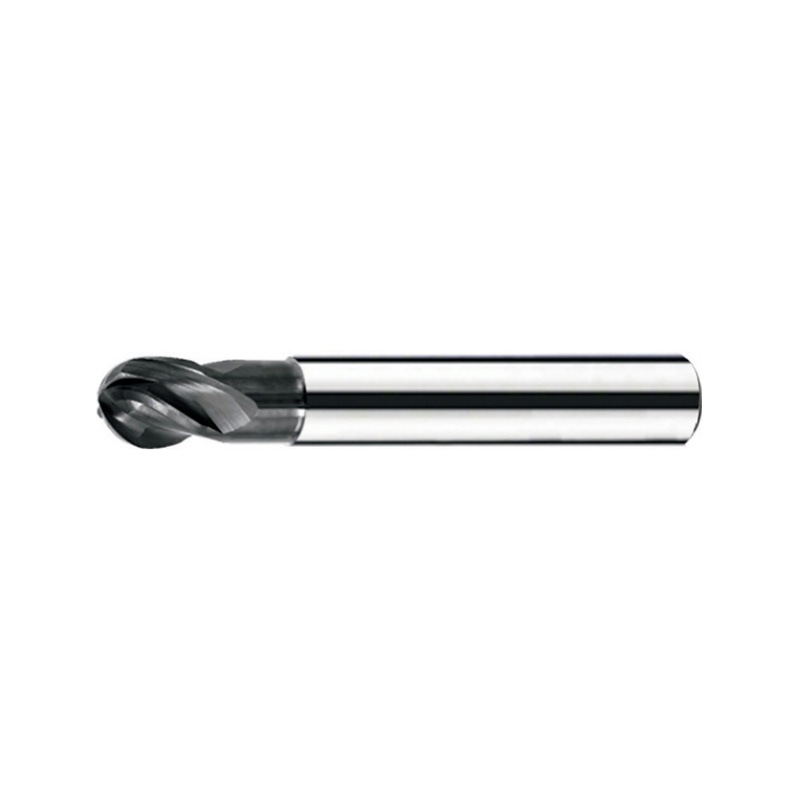

HMS Series for Machining Hard-to-Cut Materials (4-flute ball nose end mills with straight shank)

HMS Series for Machining Hard-to-Cut Materials (4-flute ball nose end mills with straight shank)

Contact Us
  • HMS Series for Machining Hard-to-Cut Materials (4-flute ball nose end mills with straight shank)
Description
Inquiry

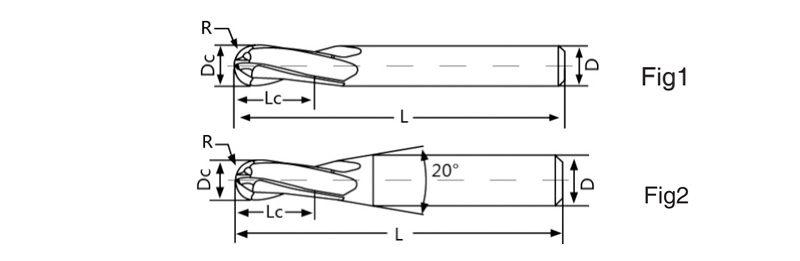

Type Basic dimension  (mm) Number of teeth Figure Stock
R Dc Lc D L
HMS-4B010-D04 0.5 1 2 4 50 2 Fig2 ○
HMS-4B015-D04 0.75 1.5 3 4 50 2 Fig2 ○
HMS-4B020-D04 1 2 4 4 50 2 Fig2 ○
HMS-4B030-D04 1.5 3 6 4 50 2 Fig2 ○
HMS-4B030-D06 1.5 3 6 6 50 2 Fig2 ○
HMS-4B040 2 4 8 4 50 2 Fig1 ○
HMS-4B040-D06 2 4 8 6 50 2 Fig2 ○
HMS-4B050-D06 2.5 5 10 6 50 2 Fig2 ○
HMS-4B060 3 6 12 6 50 2 Fig1 ○
HMS-4B080 4 8 14 8 60 2 Fig1 ○
HMS-4B100 5 10 18 10 75 2 Fig1 ○
HMS-4B120 6 12 22 12 75 2 Fig1 ○
HMS-4B160 8 16 26 16 100 2 Fig1 ○
HMS-4B200 10 20 38 20 100 2 Fig1 ○
● Stock available ○ Make-to-order
