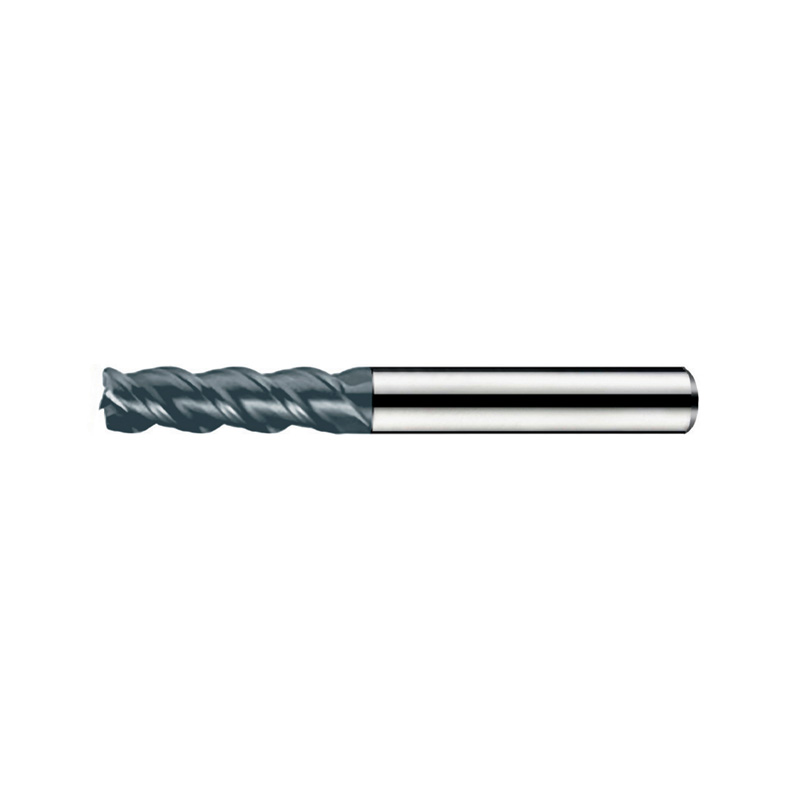

Home / Product / Hongrui Solid Carbide Tools / HMS series for machining hard-to-cut materials / HMS Series for Machining Hard-to-Cut Materials (3-flute R end mills with straight shank)

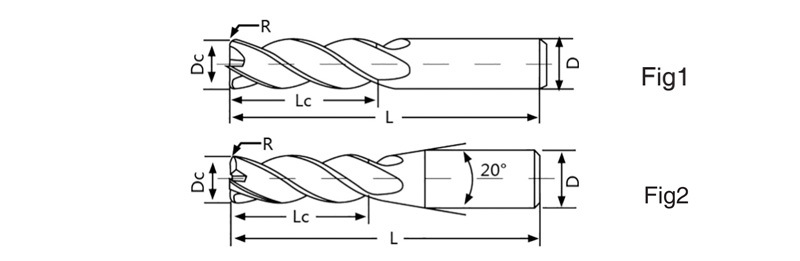

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | ||||
| R | Dc | Lc | D | L | ||||
| HMS-3R02001-D04 | 0.1 | 2 | 6 | 4 | 50 | 3 | Fig2 | ○ |
| HMS-3R02002-D04 | 0.2 | 2 | 6 | 4 | 50 | 3 | Fig2 | ○ |
| HMS-3R04002 | 0.2 | 4 | 11 | 4 | 50 | 3 | Fig1 | ○ |
| HMS-3R04005 | 0.5 | 4 | 11 | 4 | 50 | 3 | Fig1 | ○ |
| HMS-3R06002 | 0.2 | 6 | 16 | 6 | 50 | 3 | Fig1 | ○ |
| HMS-3R06005 | 0.5 | 6 | 16 | 6 | 50 | 3 | Fig1 | ○ |
| HMS-3R08005 | 0.5 | 8 | 20 | 8 | 60 | 3 | Fig1 | ○ |
| HMS-3R08010 | 1 | 8 | 20 | 8 | 60 | 3 | Fig1 | ○ |
| HMS-3R10005 | 0.5 | 10 | 25 | 10 | 75 | 3 | Fig1 | ○ |
| HMS-3R10010 | 1 | 10 | 25 | 10 | 75 | 3 | Fig1 | ○ |
| HMS-3R10015 | 1.5 | 10 | 25 | 10 | 75 | 3 | Fig1 | ○ |
| HMS-3R10020 | 2 | 10 | 25 | 10 | 75 | 3 | Fig1 | ○ |
| HMS-3R12005 | 0.5 | 12 | 30 | 12 | 75 | 3 | Fig1 | ○ |
| HMS-3R12010 | 1 | 12 | 30 | 12 | 75 | 3 | Fig1 | ○ |
| HMS-3R12015 | 1.5 | 12 | 30 | 12 | 75 | 3 | Fig1 | ○ |
| HMS-3R16005 | 0.5 | 16 | 36 | 16 | 100 | 3 | Fig1 | ○ |
| HMS-3R16010 | 1 | 16 | 36 | 16 | 100 | 3 | Fig1 | ○ |
| HMS-3R16020 | 2 | 16 | 36 | 16 | 100 | 3 | Fig1 | ○ |
| HMS-3R16030 | 3 | 16 | 36 | 16 | 100 | 3 | Fig1 | ○ |
| HMS-3R20005 | 0.5 | 20 | 45 | 20 | 100 | 3 | Fig1 | ○ |
| HMS-3R20010 | 1 | 20 | 45 | 20 | 100 | 3 | Fig1 | ○ |
| HMS-3R20020 | 2 | 20 | 45 | 20 | 100 | 3 | Fig1 | ○ |
| HMS-3R20040 | 4 | 20 | 45 | 20 | 100 | 3 | Fig1 | ○ |
