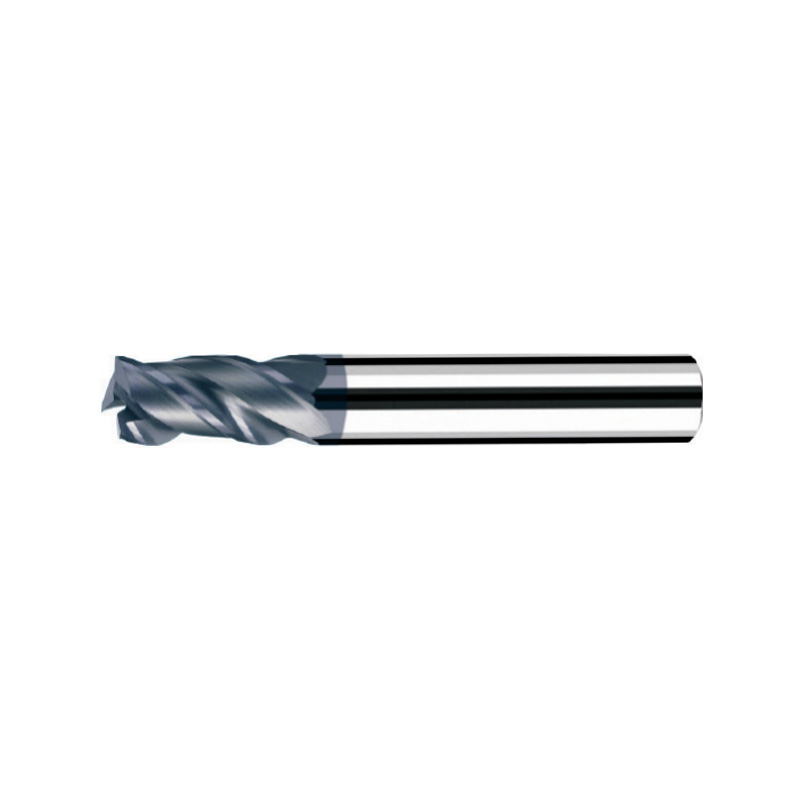

Home / Product / Hongrui Solid Carbide Tools / HMS series for machining hard-to-cut materials / HMS Series for Machining Hard-to-Cut Materials（3-flute flattened end mills with straight shank）

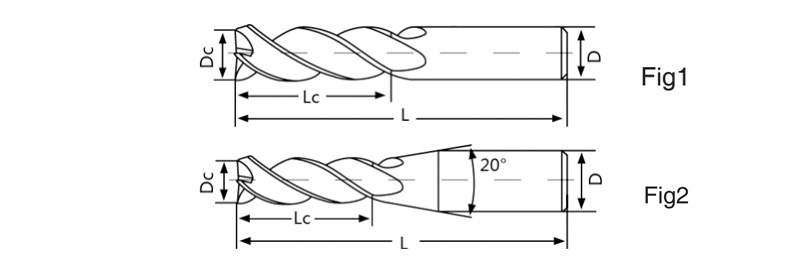

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | |||
| Dc | Lc | D | L | ||||
| HMS-3F030-D06 | 3 | 8 | 6 | 50 | 3 | Fig2 | ● |
| HMS-3F040-D06 | 4 | 11 | 6 | 50 | 3 | Fig2 | ● |
| HMS-3F050-D06 | 5 | 13 | 6 | 50 | 3 | Fig2 | ● |
| HMS-3F060 | 6 | 16 | 6 | 50 | 3 | Fig1 | ● |
| HMS-3F070-D08 | 7 | 20 | 8 | 60 | 3 | Fig2 | ● |
| HMS-3F080 | 8 | 20 | 8 | 60 | 3 | Fig1 | ● |
| HMS-3F090-D10 | 9 | 22 | 10 | 75 | 3 | Fig2 | ● |
| HMS-3F100 | 10 | 25 | 10 | 75 | 3 | Fig1 | ● |
| HMS-3F110-D12 | 11 | 26 | 12 | 75 | 3 | Fig2 | ● |
| HMS-3F120 | 12 | 30 | 12 | 75 | 3 | Fig1 | ● |
| HMS-3F160 | 16 | 45 | 16 | 100 | 3 | Fig1 | ● |
| HMS-3F200 | 20 | 45 | 20 | 100 | 3 | Fig1 | ● |
