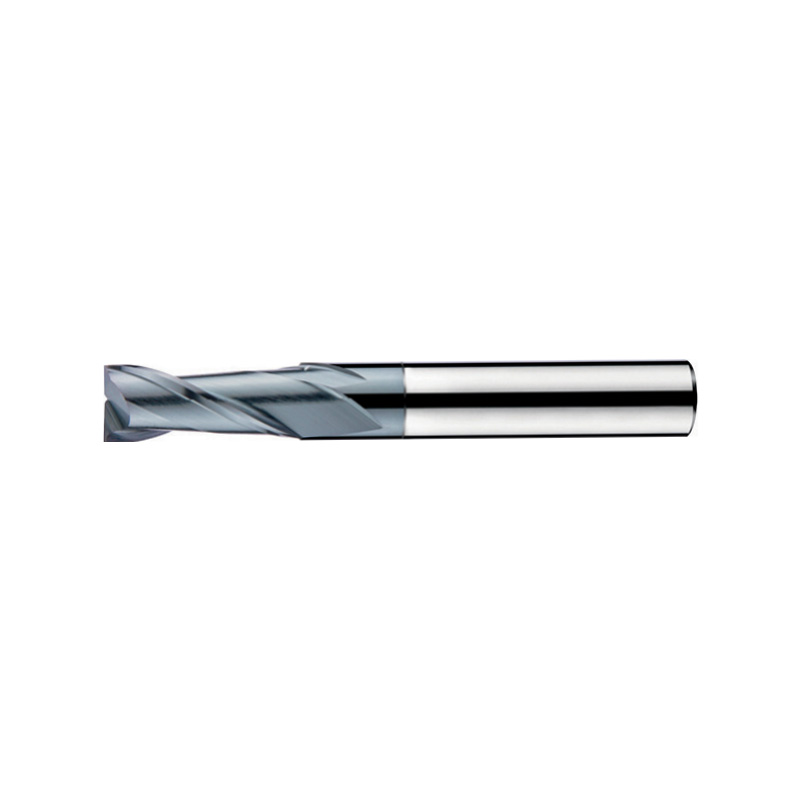

Home / Product / Hongrui Solid Carbide Tools / HMS series for machining hard-to-cut materials / HMS Series for Machining Hard-to-Cut Materials （2-flute flattened end mills with straight shank）

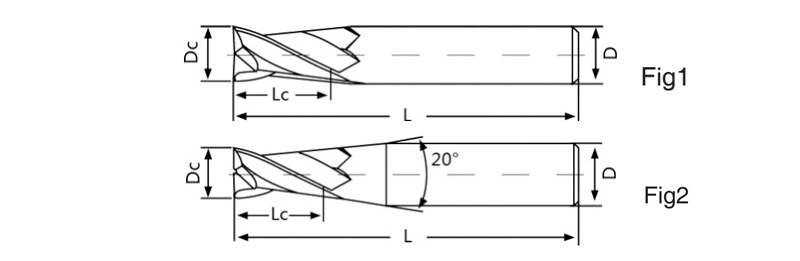

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | |||
| Dc | Lc | D | L | ||||
| HMS-2F005-D04 | 0.5 | 1 | 4 | 50 | 2 | Fig2 | ● |
| HMS-2F008-D04 | 0.8 | 2 | 4 | 50 | 2 | Fig2 | ● |
| HMS-2F010-D04 | 1 | 3 | 4 | 50 | 2 | Fig2 | ● |
| HMS-2F015-D04 | 1.5 | 4 | 4 | 50 | 2 | Fig2 | ● |
| HMS-2F020-D04 | 2 | 6 | 4 | 50 | 2 | Fig2 | ● |
| HMS-2F025-D04 | 2.5 | 8 | 4 | 50 | 2 | Fig2 | ● |
| HMS-2F030-D04 | 3 | 9 | 4 | 50 | 2 | Fig2 | ● |
| HMS-2F030-D06 | 3 | 8 | 6 | 50 | 2 | Fig2 | ● |
| HMS-2F035-D04 | 3.5 | 10 | 4 | 50 | 2 | Fig2 | ● |
| HMS-2F040 | 4 | 11 | 4 | 50 | 2 | Fig1 | ● |
| HMS-2F040-D06 | 4 | 11 | 6 | 50 | 2 | Fig2 | ● |
| HMS-2F050-D06 | 5 | 13 | 6 | 50 | 2 | Fig2 | ● |
| HMS-2F060 | 6 | 16 | 6 | 50 | 2 | Fig1 | ● |
| HMS-2F080 | 8 | 20 | 8 | 60 | 2 | Fig1 | ● |
| HMS-2F100 | 10 | 25 | 10 | 75 | 2 | Fig1 | ● |
| HMS-2F120 | 12 | 30 | 12 | 75 | 2 | Fig1 | ● |
| HMS-2F160 | 16 | 36 | 16 | 100 | 2 | Fig1 | ● |
| HMS-2F200 | 20 | 45 | 20 | 100 | 2 | Fig1 | ● |
