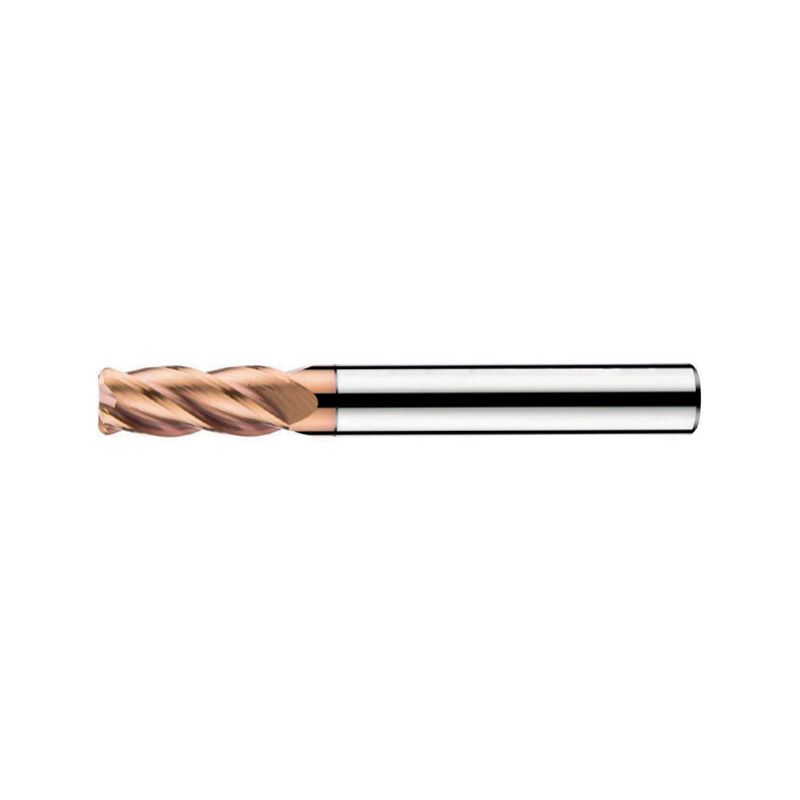

Home / Product / Hongrui Solid Carbide Tools / HMH series for machining high hardness materials / HMH Series for Machining High Hardness Materials (4-flute R end mills with straight shank)

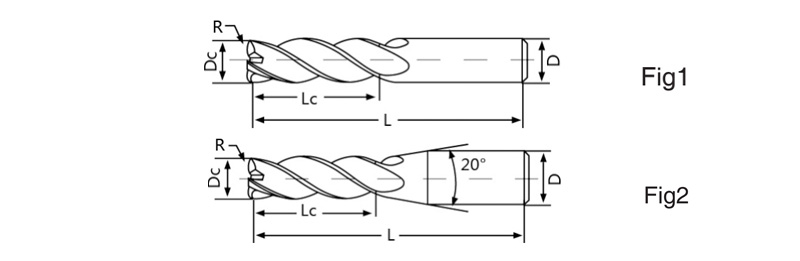

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | ||||
| R | Dc | Lc | D | L | ||||
| HMH-4R02002-D04 | 0.2 | 2 | 6 | 4 | 50 | 4 | Fig2 | ○ |
| HMH-4R03002-D04 | 0.2 | 3 | 9 | 4 | 50 | 4 | Fig2 | ○ |
| HMH-4R03003-D04 | 0.3 | 3 | 9 | 4 | 50 | 4 | Fig2 | ○ |
| HMH-4R03005-D04 | 0.5 | 3 | 9 | 4 | 50 | 4 | Fig2 | ○ |
| HMH-4R63003-D06 | 0.3 | 3 | 9 | 6 | 50 | 4 | Fig2 | ○ |
| HMH-4R63005-D06 | 0.5 | 3 | 9 | 6 | 50 | 4 | Fig2 | ○ |
| HMH-4R04002 | 0.2 | 4 | 11 | 4 | 50 | 4 | Fig1 | ○ |
| HMH-4R04003 | 0.3 | 4 | 11 | 4 | 50 | 4 | Fig1 | ○ |
| HMH-4R04005 | 0.5 | 4 | 11 | 4 | 50 | 4 | Fig1 | ○ |
| HMH-4R04010 | 1 | 4 | 11 | 4 | 50 | 4 | Fig1 | ○ |
| HMH-4R64002-D06 | 0.2 | 4 | 11 | 6 | 50 | 4 | Fig2 | ○ |
| HMH-4R64003-D06 | 0.3 | 4 | 11 | 6 | 50 | 4 | Fig2 | ○ |
| HMH-4R64005-D06 | 0.5 | 4 | 11 | 6 | 50 | 4 | Fig2 | ○ |
| HMH-4R64010-D06 | 1 | 4 | 11 | 6 | 50 | 4 | Fig2 | ○ |
| HMH-4R05005-D06 | 0.5 | 5 | 13 | 6 | 50 | 4 | Fig2 | ○ |
| HMH-4R05010-D06 | 1 | 5 | 13 | 6 | 50 | 4 | Fig2 | ○ |
| HMH-4R06002 | 0.2 | 6 | 15 | 6 | 50 | 4 | Fig1 | ○ |
| HMH-4R06005 | 0.5 | 6 | 16 | 6 | 50 | 4 | Fig1 | ○ |
| HMH-4R06010 | 1 | 6 | 16 | 6 | 50 | 4 | Fig1 | ○ |
| HMH-4R08002 | 0.2 | 8 | 20 | 8 | 60 | 4 | Fig1 | ○ |
| HMH-4R08003 | 0.3 | 8 | 20 | 8 | 60 | 4 | Fig1 | ○ |
| HMH-4R08005 | 0.5 | 8 | 20 | 8 | 60 | 4 | Fig1 | ○ |
| HMH-4R08010 | 1 | 8 | 20 | 8 | 60 | 4 | Fig1 | ○ |
| HMH-4R10005 | 0.5 | 10 | 25 | 10 | 75 | 4 | Fig1 | ○ |
| HMH-4R10010 | 1 | 10 | 25 | 10 | 75 | 4 | Fig1 | ○ |
| HMH-4R10015 | 1.5 | 10 | 25 | 10 | 75 | 4 | Fig1 | ○ |
| HMH-4R10020 | 2 | 10 | 25 | 10 | 75 | 4 | Fig1 | ○ |
| HMH-4R10030 | 3 | 10 | 25 | 10 | 75 | 4 | Fig1 | ○ |
| HMH-4R12005 | 0.5 | 12 | 30 | 12 | 75 | 4 | Fig1 | ○ |
| HMH-4R12010 | 1 | 12 | 30 | 12 | 75 | 4 | Fig1 | ○ |
| HMH-4R12015 | 1.5 | 12 | 30 | 12 | 75 | 4 | Fig1 | ○ |
| HMH-4R12020 | 2 | 12 | 30 | 12 | 75 | 4 | Fig1 | ○ |
| HMH-4R12030 | 3 | 12 | 30 | 12 | 75 | 4 | Fig1 | ○ |
