Taizhou Ruian - Indexable hardmetal(carbide) inserts for cutting tools

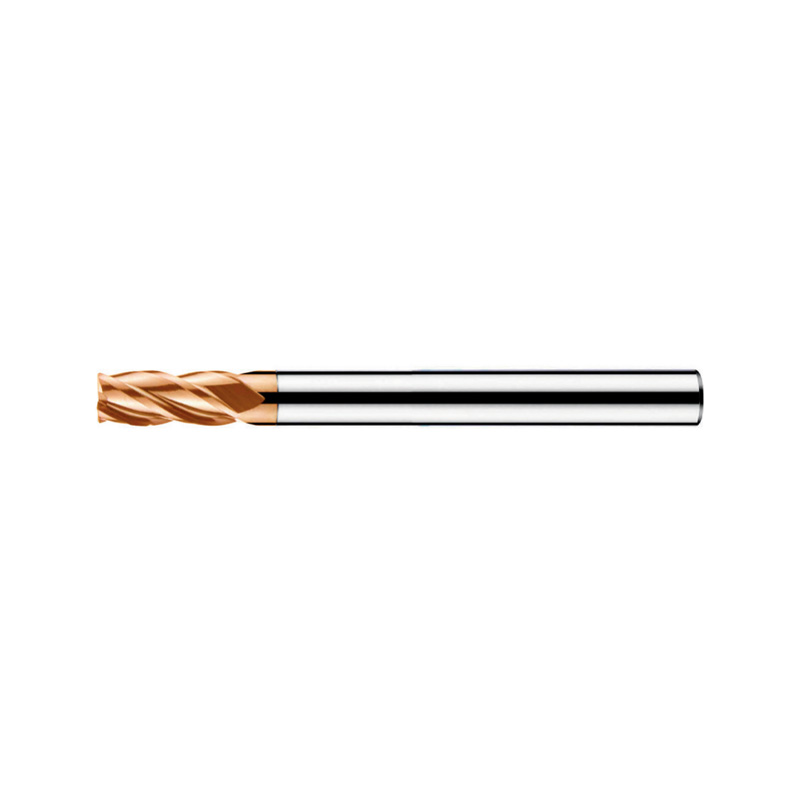

Home / Product / Hongrui Solid Carbide Tools / HMH series for machining high hardness materials / HMH Series for Machining High Hardness Materials (4-flute R end mills with straight shank and short cutting edge)

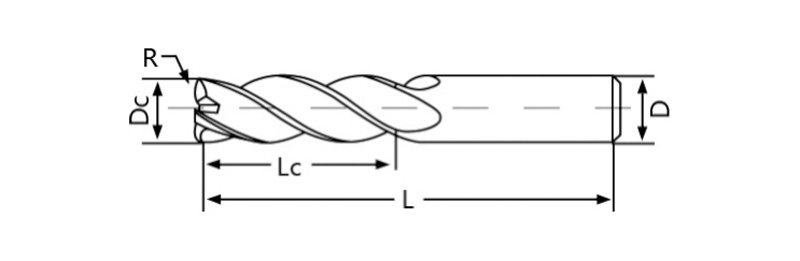

| Type | Basic dimension (mm) | Number of teeth | Stock | ||||
| R | Dc | Lc | D | L | |||
| HMH-4RS06005 | 0.5 | 6 | 6 | 6 | 50 | 4 | ○ |
| HMH-4RS06010 | 1 | 6 | 6 | 6 | 50 | 4 | ○ |
| HMH-4RS08005 | 0.5 | 8 | 8 | 8 | 60 | 4 | ○ |
| HMH-4RS08010 | 1 | 8 | 8 | 8 | 60 | 4 | ○ |
| HMH-4RS10005 | 0.5 | 10 | 10 | 10 | 75 | 4 | ○ |
| HMH-4RS10010 | 1 | 10 | 10 | 10 | 75 | 4 | ○ |
| HMH-4RS10020 | 2 | 10 | 10 | 10 | 75 | 4 | ○ |
| HMH-4RS12005 | 0.5 | 12 | 12 | 12 | 75 | 4 | ○ |
| HMH-4RS12010 | 1 | 12 | 12 | 12 | 75 | 4 | ○ |
| HMH-4RS12020 | 2 | 12 | 12 | 12 | 75 | 4 | ○ |
