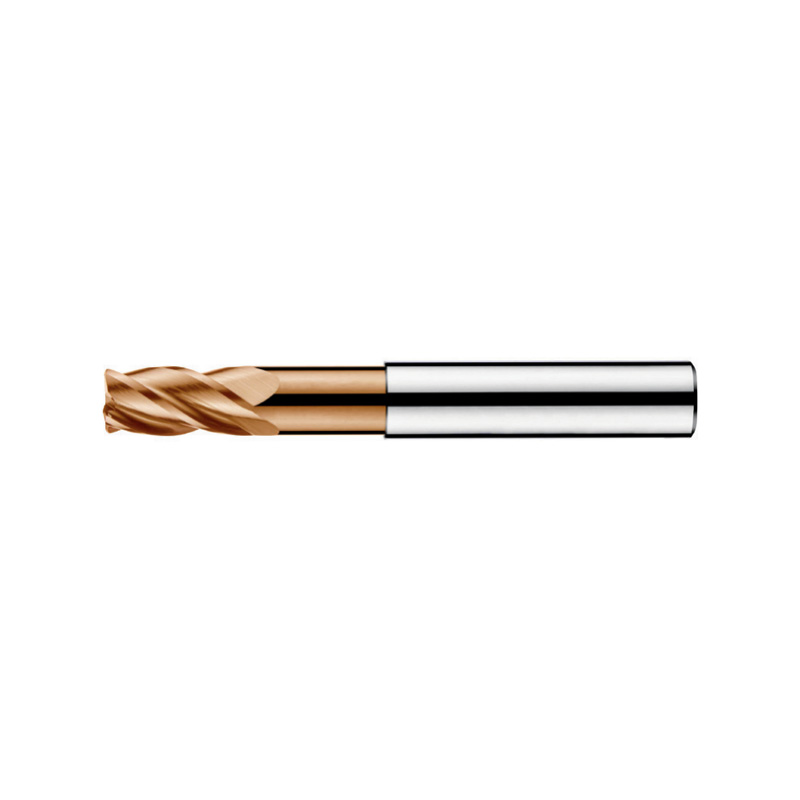

Home / Product / Hongrui Solid Carbide Tools / HMH series for machining high hardness materials / HMH Series for Machining High Hardness Materials (4-flute R end mills straight shank ,long neck and short cutting sdge)

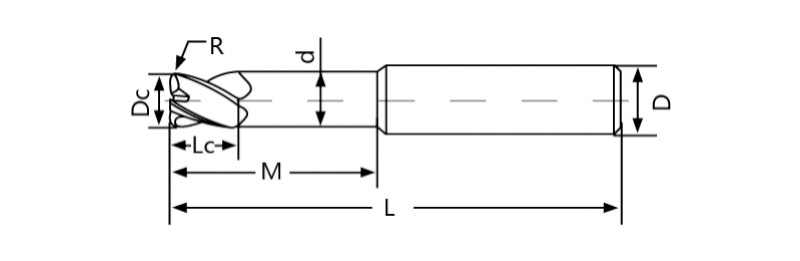

| Type | Basic dimension (mm) | Number of teeth | Stock | ||||||
| R | Dc | Lc | M | d | D | L | |||
| HMH-4RNS06005-M18 | 0.5 | 6 | 6 | 18 | 5.8 | 6 | 75 | 4 | ○ |
| HMH-4NRS06010-M18 | 1 | 6 | 6 | 18 | 5.8 | 6 | 75 | 4 | ○ |
| HMH-4RNS08005-M24 | 0.5 | 8 | 8 | 24 | 7.8 | 8 | 100 | 4 | ○ |
| HMH-4RNS08010-M24 | 1 | 8 | 8 | 24 | 7.8 | 8 | 100 | 4 | ○ |
| HMH-4RNS10005-M30 | 0.5 | 10 | 10 | 30 | 9.6 | 10 | 100 | 4 | ○ |
| HMH-4RNS10010-M30 | 1 | 10 | 10 | 30 | 9.6 | 10 | 100 | 4 | ○ |
| HMH-4RNS10020-M30 | 2 | 10 | 10 | 30 | 9.6 | 10 | 100 | 4 | ○ |
| HMH-4RNS12005-M36 | 0.5 | 12 | 12 | 36 | 11.5 | 12 | 100 | 4 | ○ |
| HMH-4RNS12010-M36 | 1 | 12 | 12 | 36 | 11.5 | 12 | 100 | 4 | ○ |
| HMH-4RNS12020-M36 | 2 | 12 | 12 | 36 | 11.5 | 12 | 100 | 4 | ○ |
| HMH-4RNS16010-M40 | 1 | 16 | 16 | 40 | 15.5 | 16 | 150 | 4 | ○ |
| HMH-4RNS16020-M40 | 2 | 16 | 16 | 40 | 15.5 | 16 | 150 | 4 | ○ |
