Home / Product / Hongrui Solid Carbide Tools / HMH series for machining high hardness materials / HMH Series for Machining High Hardness Materials（4-flute flattened end mills with straight shank and long cutting edge）

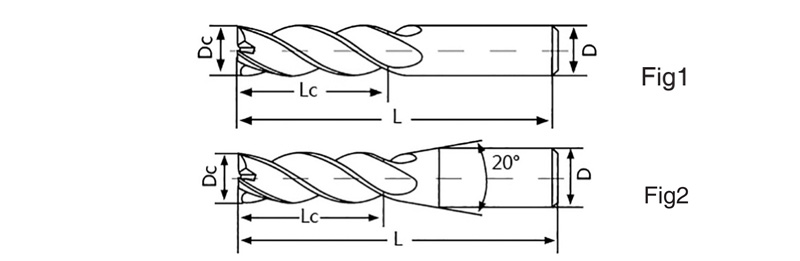

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | |||
| Dc | Lc | D | L | ||||
| HMH-4FL030-D06 | 3 | 12 | 6 | 75 | 4 | Fig2 | ○ |
| HMH-4FL040-D06 | 4 | 15 | 6 | 75 | 4 | Fig2 | ○ |
| HMH-4FL050-D06 | 5 | 20 | 6 | 75 | 4 | Fig2 | ○ |
| HMH-4FL060 | 6 | 20 | 6 | 75 | 4 | Fig1 | ○ |
| HMH-4FL080 | 8 | 25 | 8 | 100 | 4 | Fig1 | ○ |
| HMH-4FL100 | 10 | 30 | 10 | 100 | 4 | Fig1 | ○ |
| HMH-4FL120 | 12 | 35 | 12 | 100 | 4 | Fig1 | ○ |
| HMH-4FL140 | 14 | 40 | 14 | 100 | 4 | Fig1 | ○ |
| HMH-4FL160 | 16 | 50 | 16 | 150 | 4 | Fig1 | ○ |
| HMH-4FL200 | 20 | 55 | 20 | 150 | 4 | Fig1 | ○ |
