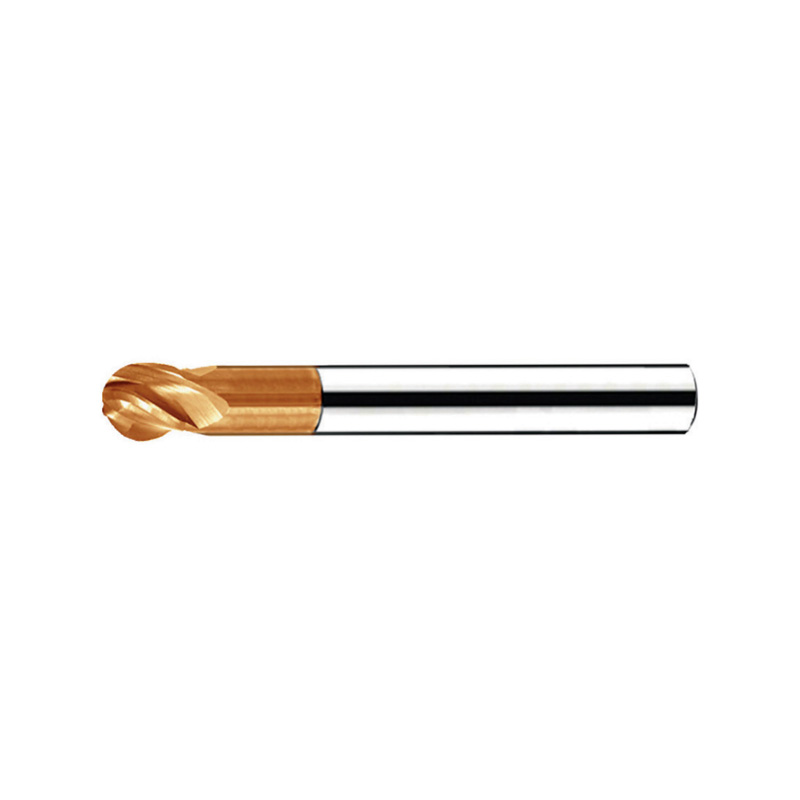

Home / Product / Hongrui Solid Carbide Tools / HMH series for machining high hardness materials / HMH Series for Machining High Hardness Materials (4-flute ball nose end mills with straight shank)

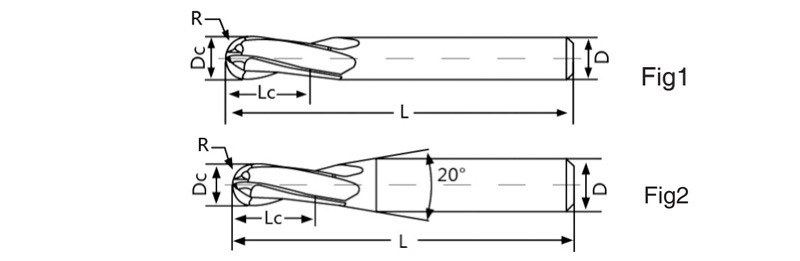

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | ||||
| R | Dc | Lc | D | L | ||||
| HMH-4B030-D06 | 1.5 | 3 | 6 | 6 | 50 | 4 | Fig2 | ○ |
| HMH-4B040-D06 | 2 | 4 | 8 | 6 | 50 | 4 | Fig2 | ○ |
| HMH-4B050-D06 | 2.5 | 5 | 10 | 6 | 50 | 4 | Fig2 | ○ |
| HMH-4B060 | 3 | 6 | 12 | 6 | 50 | 4 | Fig1 | ○ |
| HMH-4B080 | 4 | 8 | 16 | 8 | 60 | 4 | Fig1 | ○ |
| HMH-4B100 | 5 | 10 | 20 | 10 | 75 | 4 | Fig1 | ○ |
| HMH-4B120 | 6 | 12 | 24 | 12 | 75 | 4 | Fig1 | ○ |
| HMH-4B140 | 7 | 14 | 28 | 14 | 75 | 4 | Fig1 | ○ |
| HMH-4B160 | 8 | 16 | 32 | 16 | 100 | 4 | Fig1 | ○ |
| HMH-4B180 | 9 | 18 | 36 | 18 | 100 | 4 | Fig1 | ○ |
| HMH-4B200 | 10 | 20 | 40 | 20 | 100 | 4 | Fig1 | ○ |
