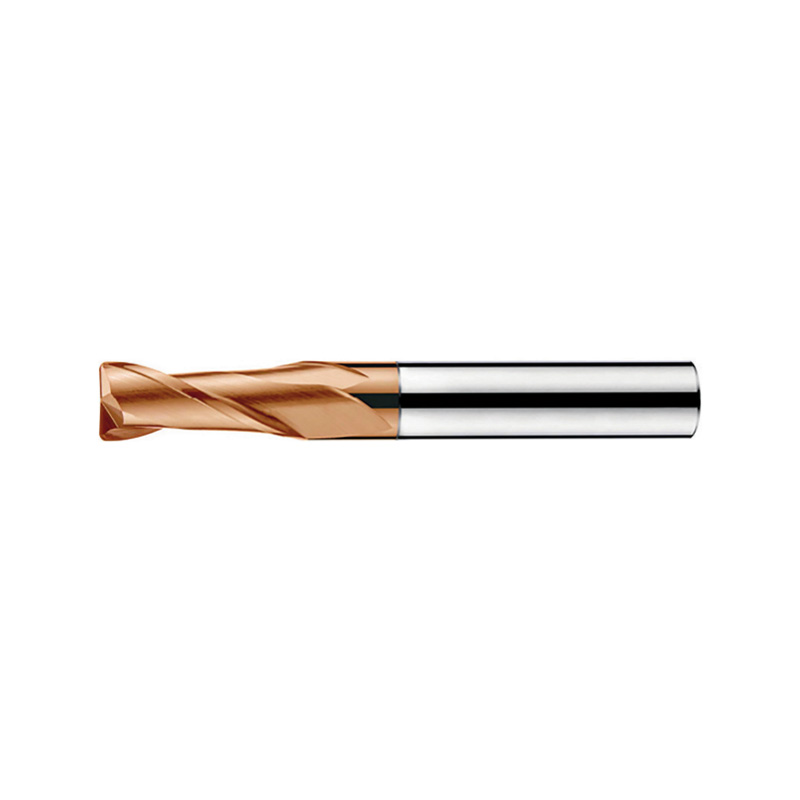

HMH Series for Machining High Hardness Materials (2-flute R end mills with straight shank)

HMH Series for Machining High Hardness Materials (2-flute R end mills with straight shank)

Contact Us
  • HMH Series for Machining High Hardness Materials (2-flute R end mills with straight shank)
Description
Inquiry

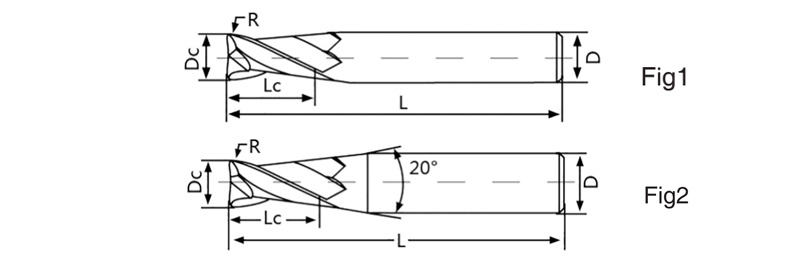

Type Basic dimension  (mm) Number of teeth Figure Stock
R Dc Lc D L
HMH-2R01001 0.1 1 2.5 4 50 2 Fig2 ○
HMH-2R01002 0.2 1 2.5 4 50 2 Fig2 ○
HMH-2R02001 0.1 2 5 4 50 2 Fig2 ○
HMH-2R02002 0.2 2 5 4 50 2 Fig2 ○
HMH-2R02003 0.3 2 5 4 50 2 Fig2 ○
HMH-2R03002-D06 0.2 3 7.5 6 50 2 Fig2 ○
HMH-2R03003-D06 0.3 3 7.5 6 50 2 Fig2 ○
HMH-2R03005-D06 0.5 3 7.5 6 50 2 Fig2 ○
HMH-2R04003 0.3 4 10 4 50 2 Fig1 ○
HMH-2R04005 0.5 4 10 4 50 2 Fig1 ○
HMH-2R04005-D06 0.5 4 10 6 50 2 Fig1 ○
HMH-2R04010 1 4 10 4 50 2 Fig1 ○
HMH-2R04010-D06 1 4 10 6 50 2 Fig1 ○
HMH-2R05005 0.5 5 12.5 6 50 2 Fig1 ○
HMH-2R05010 1 5 12.5 6 50 2 Fig1 ○
HMH-2R06005 0.5 6 15 6 50 2 Fig1 ○
HMH-2R06010 1 6 15 6 50 2 Fig1 ○
HMH-2R08005 0.5 8 20 8 60 2 Fig1 ○
HMH-2R08010 1 8 20 8 60 2 Fig1 ○
HMH-2R10005 0.5 10 25 10 75 2 Fig1 ○
HMH-2R10010 1 10 25 10 75 2 Fig1 ○
HMH-2R10015 1.5 10 25 10 75 2 Fig1 ○
HMH-2R10020 2 10 25 10 75 2 Fig1 ○
HMH-2R12005 0.5 12 30 12 75 2 Fig1 ○
HMH-2R12010 1 12 30 12 75 2 Fig1 ○
HMH-2R12015 1.5 12 30 12 75 2 Fig1 ○
HMH-2R12020 2 12 30 12 75 2 Fig1 ○
● Stock available ○ Make-to-order
