Home / Product / Hongrui Solid Carbide Tools / HMH series for machining high hardness materials / HMH Series for Machining High Hardness Materials（2-flute flattened end mills with straight shank, long neck and short cutting edge）
| Type | Basic dimension (mm) | Number of teeth | Stock | |||||

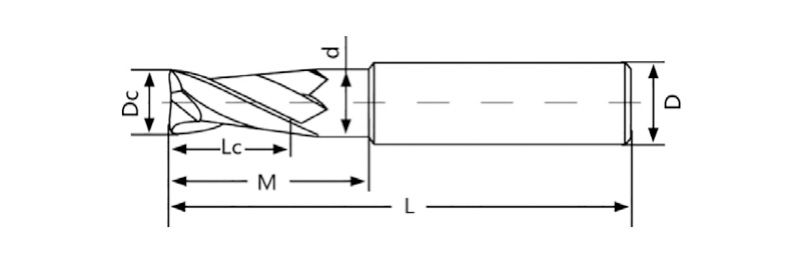

| Dc | Lc | M | d | D | L | |||
| HMH-2FNS060-M30 | 6 | 9 | 30 | 5.8 | 6 | 75 | 2 | ○ |
| HMH-2FNS080-M40 | 8 | 12 | 40 | 7.8 | 8 | 100 | 2 | ○ |
| HMH-2FNS100-M50 | 10 | 15 | 50 | 9.6 | 10 | 100 | 2 | ○ |
| HMH-2FNS120-M50 | 12 | 18 | 50 | 11.5 | 12 | 100 | 2 | ○ |
| HMH-2FNS160-M50 | 16 | 24 | 50 | 15.5 | 16 | 150 | 2 | ○ |
| HMH-2FNS200-M60 | 20 | 30 | 60 | 19.5 | 20 | 150 | 2 | ○ |
