HMH series for machining high hardness materials

Taizhou Ruian - Indexable hardmetal(carbide) inserts for cutting tools

Home / Product / Hongrui Solid Carbide Tools / HMH series for machining high hardness materials / HMH Series for Machining High Hardness Materials（2-flute flattened end mills with straight shank and tiny diameter）

HMH Series for Machining High Hardness Materials（2-flute flattened end mills with straight shank and tiny diameter）

HMH Series for Machining High Hardness Materials（2-flute flattened end mills with straight shank and tiny diameter）

Contact Us
  • HMH Series for Machining High Hardness Materials（2-flute flattened end mills with straight shank and tiny diameter）
Description
Inquiry

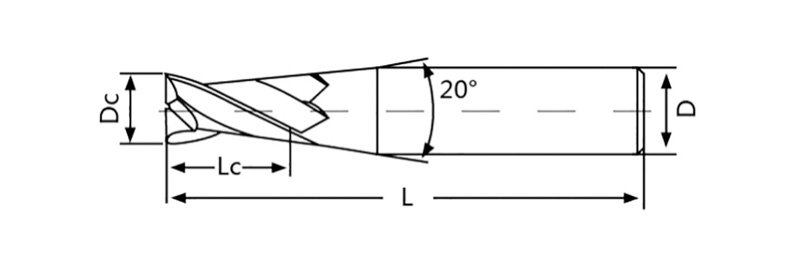

Type Basic dimension  (mm) Number of teeth Stock
Dc Lc D L
HMH-2F003-D04V 0.3 0.6 4 50 2 ○
HMH-2F004-D04V 0.4 0.8 4 50 2 ○
HMH-2F005-D04V 0.5 1 4 50 2 ○
HMH-2F006-D04V 0.6 1.2 4 50 2 ○
HMH-2F007-D04V 0.7 1.4 4 50 2 ○
HMH-2F008-D04V 0.8 1.6 4 50 2 ○
HMH-2F009-D04V 0.9 1.8 4 50 2 ○
HMH-2F010-D04V 1 2 4 50 2 ○
HMH-2F011-D04V 1.1 2 4 50 2 ○
HMH-2F012-D04V 1.2 2.5 4 50 2 ○
HMH-2F013-D04V 1.3 2.5 4 50 2 ○
HMH-2F014-D04V 1.4 3 4 50 2 ○
HMH-2F015-D04V 1.5 3 4 50 2 ○
HMH-2F016-D04V 1.6 3.5 4 50 2 ○
HMH-2F017-D04V 1.7 3.5 4 50 2 ○
HMH-2F018-D04V 1.8 4 4 50 2 ○
HMH-2F019-D04V 1.9 4 4 50 2 ○
HMH-2F020-D04V 2 4 4 50 2 ○
HMH-2F021-D04V 2.1 4 4 50 2 ○
HMH-2F022-D04V 2.2 4.5 4 50 2 ○
HMH-2F023-D04V 2.3 4.5 4 50 2 ○
HMH-2F024-D04V 2.4 5 4 50 2 ○
HMH-2F025-D04V 2.5 5 4 50 2 ○
HMH-2F026-D04V 2.6 5 4 50 2 ○
HMH-2F027-D04V 2.7 5.5 4 50 2 ○
HMH-2F028-D04V 2.8 5.5 4 50 2 ○
HMH-2F029-D04V 2.9 6 4 50 2 ○
HMH-2F030-D04V 3 6 4 50 2 ○
● Stock available ○ Make-to-order
