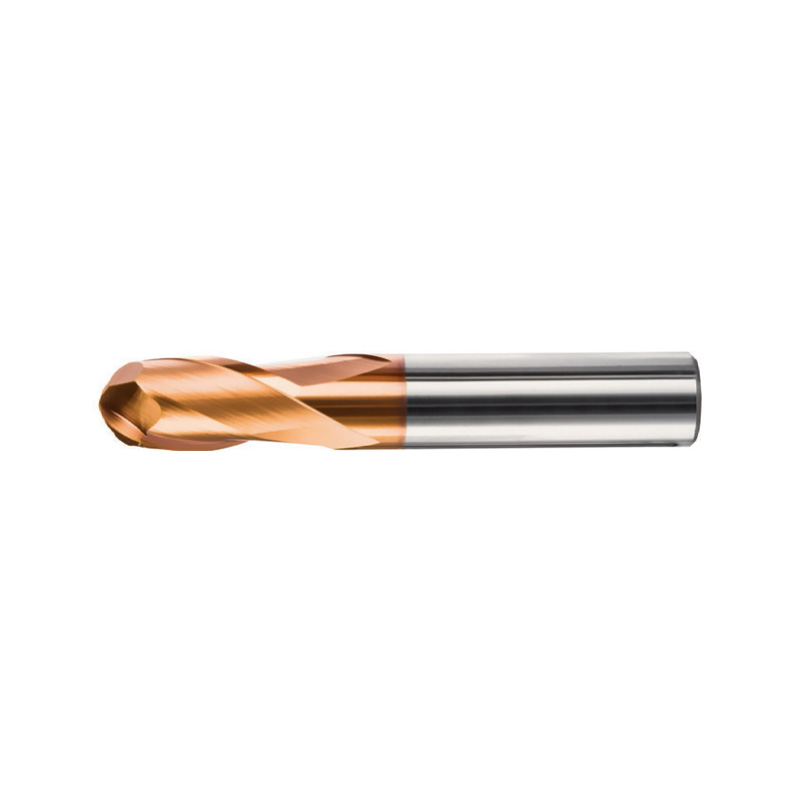

Home / Product / Hongrui Solid Carbide Tools / HMH series for machining high hardness materials / HMH Series for Machining High Hardness Materials（2-flute ball nose end mills with straight shank）

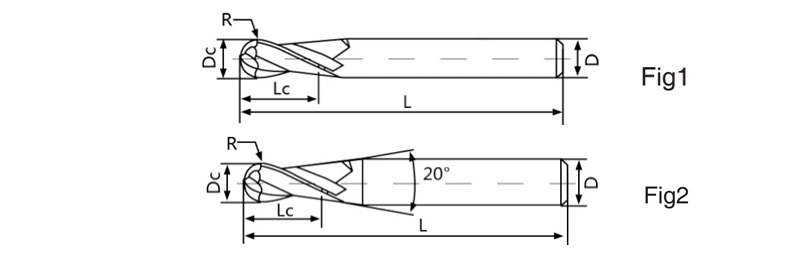

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | ||||
| R | Dc | Lc | D | L | ||||
| HMH-2B010-D04 | 0.5 | 1 | 2 | 4 | 50 | 2 | Fig2 | ● |
| HMH-2B010-D06 | 0.5 | 1 | 2 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2B015-D04 | 0.75 | 1.5 | 3 | 4 | 50 | 2 | Fig2 | ● |
| HMH-2B015-D06 | 0.75 | 1.5 | 3 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2B020-D04 | 1 | 2 | 4 | 4 | 50 | 2 | Fig2 | ● |
| HMH-2B020-D06 | 1 | 2 | 4 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2B025-D04 | 1.25 | 2.5 | 5 | 4 | 50 | 2 | Fig2 | ● |
| HMH-2B025-D06 | 1.25 | 2.5 | 5 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2B030-D04 | 1.5 | 3 | 6 | 4 | 50 | 2 | Fig2 | ● |
| HMH-2B030-D06 | 1.5 | 3 | 6 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2B035-D06 | 1.75 | 3.5 | 8 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2B040 | 2 | 4 | 8 | 4 | 50 | 2 | Fig1 | ● |
| HMH-2B040-D06 | 2 | 4 | 8 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2B050-D06 | 2.5 | 5 | 10 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2B055-D06 | 2.75 | 5.5 | 12 | 6 | 50 | 2 | Fig2 | ● |
| HMH-2B060 | 3 | 6 | 12 | 6 | 50 | 2 | Fig1 | ● |
| HMH-2B070-D08 | 3.5 | 7 | 14 | 8 | 60 | 2 | Fig2 | ● |
| HMH-2B080 | 4 | 8 | 16 | 8 | 60 | 2 | Fig1 | ● |
| HMH-2B090-D10 | 4.5 | 9 | 18 | 10 | 75 | 2 | Fig2 | ● |
| HMH-2B100 | 5 | 10 | 20 | 10 | 75 | 2 | Fig1 | ● |
| HMH-2B120 | 6 | 12 | 24 | 12 | 75 | 2 | Fig1 | ● |
| HMH-2B140 | 7 | 14 | 28 | 14 | 75 | 2 | Fig1 | ● |
| HMH-2B160 | 8 | 16 | 32 | 16 | 100 | 2 | Fig1 | ● |
| HMH-2B200 | 10 | 20 | 40 | 20 | 100 | 2 | Fig1 | ● |
