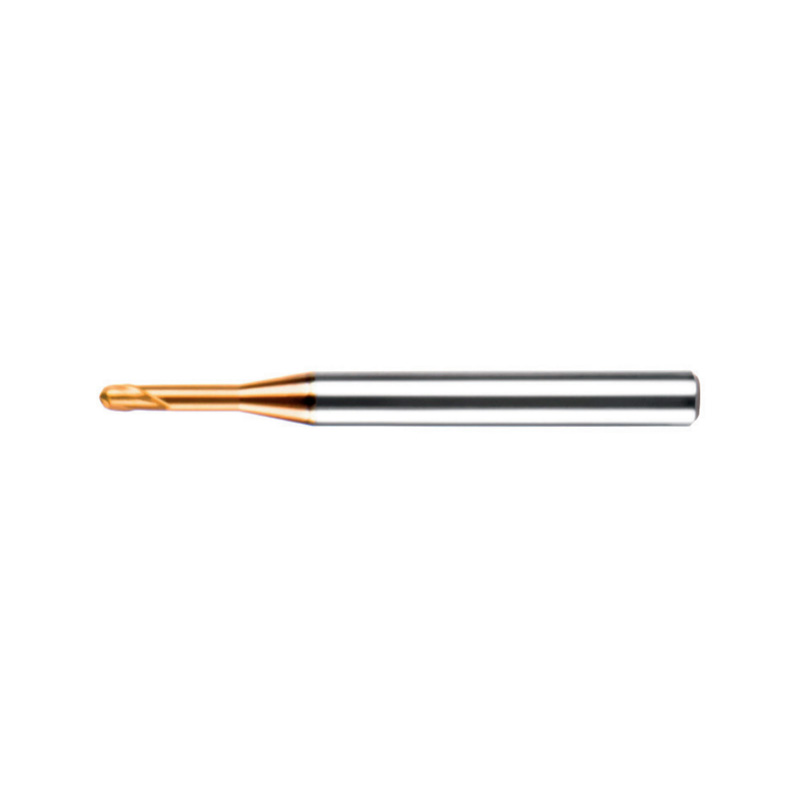

HMH Series for Machining High Hardness Materials（2-flute ball nose end mills with straight shank ，long neck and short cutting edge）

Type	Basic dimension (mm)							Number of teeth	Stock

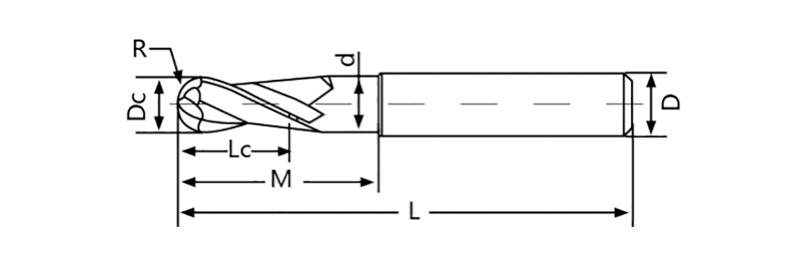

Type	R	Dc	Lc	M	d	D	L	Number of teeth	Stock
HMH-2BNS005-D04M04	0.25	0.5	0.7	4	0.45	4	50	2	○
HMH-2BNS005-D04M06	0.25	0.5	0.7	6	0.45	4	50	2	○
HMH-2BNS006-D04M04	0.3	0.6	0.9	4	0.55	4	50	2	○
HMH-2BNS006-D04M06	0.3	0.6	0.9	6	0.55	4	50	2	○
HMH-2BNS006-D04M08	0.3	0.6	0.9	8	0.55	4	50	2	○
HMH-2BNS008-D04M04	0.4	0.8	1.2	4	0.75	4	50	2	○
HMH-2BNS008-D04M06	0.4	0.8	1.2	6	0.75	4	50	2	○
HMH-2BNS008-D04M08	0.4	0.8	1.2	8	0.75	4	50	2	○
HMH-2BNS008-D04M10	0.4	0.8	1.2	10	0.75	4	50	2	○
HMH-2BNS010-D04M04	0.5	1	1.5	4	0.95	4	50	2	○
HMH-2BNS010-D04M06	0.5	1	1.5	6	0.95	4	50	2	○
HMH-2BNS010-D04M08	0.5	1	1.5	8	0.95	4	50	2	○
HMH-2BNS010-D04M10	0.5	1	1.5	10	0.95	4	50	2	○
HMH-2BNS010-D04M12	0.5	1	1.5	12	0.95	4	50	2	○
HMH-2BNS012-D04M06	0.6	1.2	1.8	6	1.15	4	50	2	○
HMH-2BNS012-D04M08	0.6	1.2	1.8	8	1.15	4	50	2	○
HMH-2BNS012-D04M12	0.6	1.2	1.8	12	1.15	4	50	2	○
HMH-2BNS012-D04M16	0.6	1.2	1.8	16	1.15	4	50	2	○
HMH-2BNS015-D04M08	0.75	1.5	2.3	8	1.45	4	50	2	○
HMH-2BNS015-D04M12	0.75	1.5	2.3	12	1.45	4	50	2	○
HMH-2BNS015-D04M16	0.75	1.5	2.3	16	1.45	4	50	2	○
HMH-2BNS020-D04M06	1	2	3	6	1.95	4	50	2	○
HMH-2BNS020-D04M08	1	2	3	8	1.95	4	50	2	○
HMH-2BNS020-D04M10	1	2	3	10	1.95	4	50	2	○
HMH-2BNS020-D04M12	1	2	3	12	1.95	4	50	2	○
HMH-2BNS020-D04M16	1	2	3	16	1.95	4	50	2	○
HMH-2BNS020-D04M20	1	2	3	20	1.95	4	50	2	○
HMH-2BNS025-D04M08	1.25	2.5	3.7	8	2.4	4	50	2	○
HMH-2BNS025-D04M12	1.25	2.5	3.7	12	2.4	4	50	2	○
HMH-2BNS025-D04M16	1.25	2.5	3.7	16	2.4	4	50	2	○
HMH-2BNS025-D04M20	1.25	2.5	3.7	20	2.4	4	50	2	○
HMH-2BNS030-D06M08	1.5	3	4.5	8	2.85	4	50	2	○
HMH-2BNS030-D06M10	1.5	3	4.5	10	2.85	4	50	2	○
HMH-2BNS030-D06M12	1.5	3	4.5	12	2.85	4	50	2	○
HMH-2BNS030-D06M16	1.5	3	4.5	16	2.85	4	60	2	○
HMH-2BNS030-D06M20	1.5	3	4.5	20	2.85	4	60	2	○
HMH-2BNS040-D06M10	2	4	6	10	3.85	4	60	2	○
HMH-2BNS040-D06M16	2	4	6	16	3.85	4	60	2	○
HMH-2BNS040-D06M20	2	4	6	20	3.85	4	60	2	○
HMH-2BNS040-D06M25	2	4	6	25	3.85	4	60	2	○
HMH-2BNS050-D06M16	2.5	5	7.5	16	4.85	4	60	2	○
HMH-2BNS050-D06M25	2.5	5	7.5	25	4.85	4	70	2	○

● Stock available ○ Make-to-order
