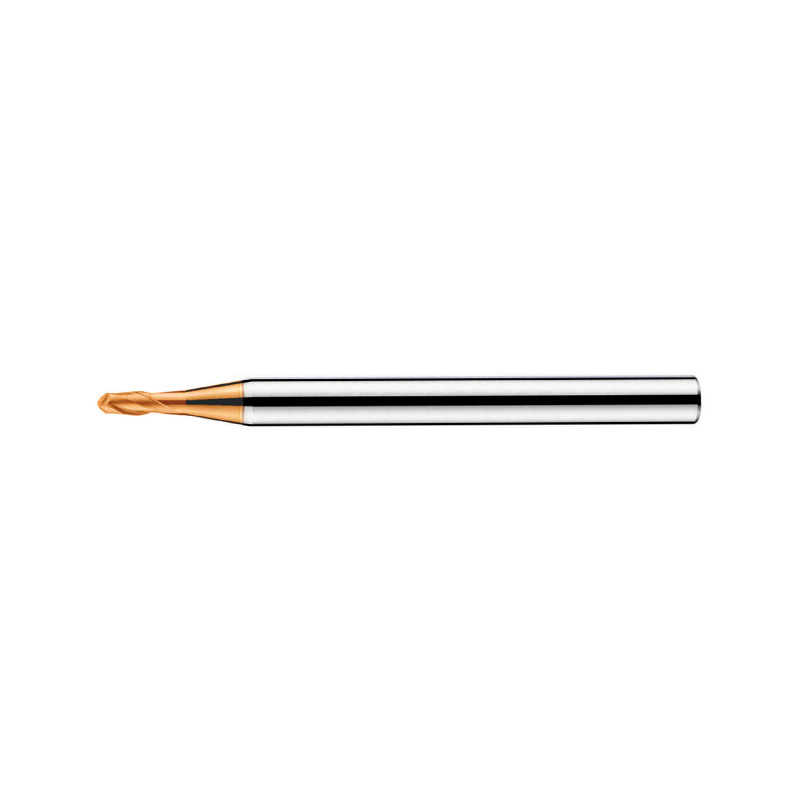

Home / Product / Hongrui Solid Carbide Tools / HMH series for machining high hardness materials / HMH Series for Machining High Hardness Materials (2-flute ball nose end mills with straight shank and tiny diameter)

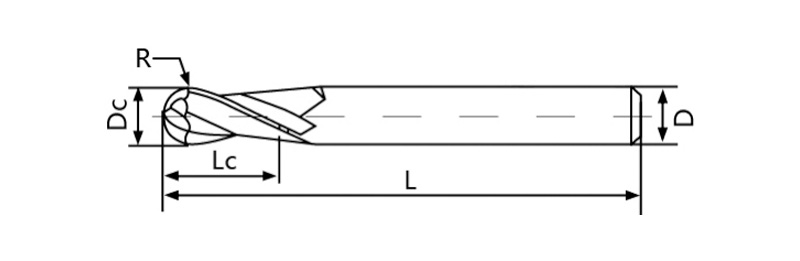

| Type | Basic dimension (mm) | Number of teeth | Stock | ||||
| R | Dc | Lc | D | L | |||
| HMH-2B003-D04V | 0.15 | 0.3 | 0.5 | 4 | 50 | 2 | ○ |
| HMH-2B004-D04V | 0.2 | 0.4 | 0.6 | 4 | 50 | 2 | ○ |
| HMH-2B005-D04V | 0.25 | 0.5 | 0.8 | 4 | 50 | 2 | ○ |
| HMH-2B006-D04V | 0.3 | 0.6 | 0.9 | 4 | 50 | 2 | ○ |
| HMH-2B007-D04V | 0.35 | 0.7 | 1 | 4 | 50 | 2 | ○ |
| HMH-2B008-D04V | 0.4 | 0.8 | 1.2 | 4 | 50 | 2 | ○ |
| HMH-2B009-D04V | 0.45 | 0.9 | 1.3 | 4 | 50 | 2 | ○ |
| HMH-2B010-D04V | 0.5 | 1 | 1.5 | 4 | 50 | 2 | ○ |
| HMH-2B012-D04V | 0.6 | 1.2 | 1.8 | 4 | 50 | 2 | ○ |
| HMH-2B014-D04V | 0.7 | 1.4 | 2 | 4 | 50 | 2 | ○ |
| HMH-2B015-D04V | 0.75 | 1.5 | 2.3 | 4 | 50 | 2 | ○ |
| HMH-2B016-D04V | 0.8 | 1.6 | 2.5 | 4 | 50 | 2 | ○ |
| HMH-2B018-D04V | 0.9 | 1.8 | 2.7 | 4 | 50 | 2 | ○ |
| HMH-2B020-D04V | 1 | 2 | 3 | 4 | 50 | 2 | ○ |
| HMH-2B025-D04V | 1.25 | 2.5 | 3.7 | 4 | 50 | 2 | ○ |
| HMH-2B030-D04V | 1.5 | 3 | 4.5 | 4 | 50 | 2 | ○ |
