Home / Product / Hongrui Solid Carbide Tools / HMA series for machining aluminium alloy materials / HMA Series for Machining Aluminium Alloy Materials (3-flute R end mills with straight shank)

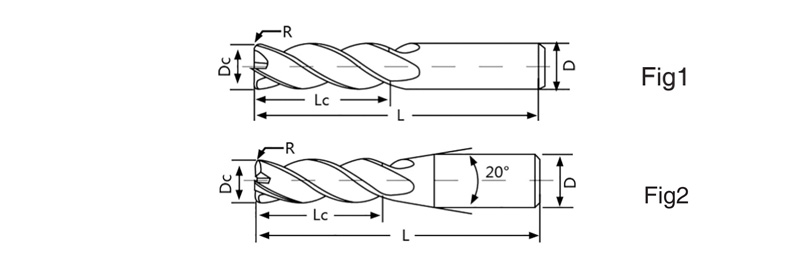

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | ||||
| R | Dc | Lc | D | L | ||||
| HMA-3R01001-D04 | 0.1 | 1 | 3 | 4 | 50 | 3 | Fig2 | ○ |
| HMA-3R02002-D04 | 0.2 | 2 | 6 | 4 | 50 | 3 | Fig2 | ○ |
| HMA-3R03002-D04 | 0.2 | 3 | 9 | 4 | 50 | 3 | Fig2 | ○ |
| HMA-3R03003-D04 | 0.3 | 3 | 9 | 4 | 50 | 3 | Fig2 | ○ |
| HMA-3R03005-D04 | 0.5 | 3 | 9 | 4 | 50 | 3 | Fig2 | ○ |
| HMA-3R04002 | 0.2 | 4 | 11 | 4 | 50 | 3 | Fig1 | ○ |
| HMA-3R04003 | 0.3 | 4 | 11 | 4 | 50 | 3 | Fig1 | ○ |
| HMA-3R04005 | 0.5 | 4 | 11 | 4 | 50 | 3 | Fig1 | ○ |
| HMA-3R04010 | 1 | 4 | 11 | 4 | 50 | 3 | Fig1 | ○ |
| HMA-3R05002-D06 | 0.2 | 5 | 13 | 6 | 50 | 3 | Fig2 | ○ |
| HMA-3R05003-D06 | 0.3 | 5 | 13 | 6 | 50 | 3 | Fig2 | ○ |
| HMA-3R05005-D06 | 0.5 | 5 | 13 | 6 | 50 | 3 | Fig2 | ○ |
| HMA-3R05010-D06 | 1 | 5 | 13 | 6 | 50 | 3 | Fig2 | ○ |
| HMA-3R06005 | 0.5 | 6 | 16 | 6 | 50 | 3 | Fig1 | ○ |
| HMA-3R06010 | 1 | 6 | 16 | 6 | 50 | 3 | Fig1 | ○ |
| HMA-3R06015 | 1.5 | 6 | 16 | 6 | 50 | 3 | Fig1 | ○ |
| HMA-3R06020 | 2 | 6 | 16 | 6 | 50 | 3 | Fig1 | ○ |
| HMA-3R08005 | 0.5 | 8 | 20 | 8 | 60 | 3 | Fig1 | ○ |
| HMA-3R08010 | 1 | 8 | 20 | 8 | 60 | 3 | Fig1 | ○ |
| HMA-3R08015 | 1.5 | 8 | 20 | 8 | 60 | 3 | Fig1 | ○ |
| HMA-3R08020 | 2 | 8 | 20 | 8 | 60 | 3 | Fig1 | ○ |
| HMA-3R10005 | 0.5 | 10 | 25 | 10 | 75 | 3 | Fig1 | ○ |
| HMA-3R10010 | 1 | 10 | 25 | 10 | 75 | 3 | Fig1 | ○ |
| HMA-3R10015 | 1.5 | 10 | 25 | 10 | 75 | 3 | Fig1 | ○ |
| HMA-3R10020 | 2 | 10 | 25 | 10 | 75 | 3 | Fig1 | ○ |
| HMA-3R10025 | 2.5 | 10 | 25 | 10 | 75 | 3 | Fig1 | ○ |
| HMA-3R12005 | 0.5 | 12 | 30 | 12 | 75 | 3 | Fig1 | ○ |
| HMA-3R12010 | 1 | 12 | 30 | 12 | 75 | 3 | Fig1 | ○ |
| HMA-3R12015 | 1.5 | 12 | 30 | 12 | 75 | 3 | Fig1 | ○ |
| HMA-3R12020 | 2 | 12 | 30 | 12 | 75 | 3 | Fig1 | ○ |
| HMA-3R12025 | 2.5 | 12 | 30 | 12 | 75 | 3 | Fig1 | ○ |
| HMA-3R16005 | 0.5 | 16 | 36 | 16 | 100 | 3 | Fig1 | ○ |
| HMA-3R16010 | 1 | 16 | 36 | 16 | 100 | 3 | Fig1 | ○ |
| HMA-3R16015 | 1.5 | 16 | 36 | 16 | 100 | 3 | Fig1 | ○ |
| HMA-3R16020 | 2 | 16 | 36 | 16 | 100 | 3 | Fig1 | ○ |
| HMA-3R16025 | 2.5 | 16 | 36 | 16 | 100 | 3 | Fig1 | ○ |
| HMA-3R20005 | 0.5 | 20 | 45 | 20 | 100 | 3 | Fig1 | ○ |
| HMA-3R20010 | 1 | 20 | 45 | 20 | 100 | 3 | Fig1 | ○ |
| HMA-3R20015 | 1.5 | 20 | 45 | 20 | 100 | 3 | Fig1 | ○ |
| HMA-3R20020 | 2 | 20 | 45 | 20 | 100 | 3 | Fig1 | ○ |
| HMA-3R20030 | 3 | 20 | 45 | 20 | 100 | 3 | Fig1 | ○ |
