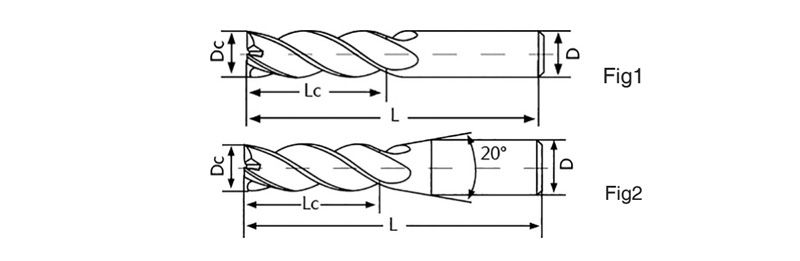

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | |||
| Dc | Lc | D | L | ||||
| HM450 D1*3*50L*D4*4F | 1 | 3 | 4 | 50 | 4 | Fig2 | ● |
| HM450 D1.5*4*50L*D4*4F | 1.5 | 4 | 4 | 50 | 4 | Fig2 | ● |
| HM450 D2*6*50L*D4*4F | 2 | 6 | 4 | 50 | 4 | Fig2 | ● |
| HM450 D2.5*8*50L*D4*4F | 2.5 | 8 | 4 | 50 | 4 | Fig2 | ● |
| HM450 D3*9*50L*D4*4F | 3 | 9 | 4 | 50 | 4 | Fig2 | ● |
| HM450 D4*12*50L*D4*4F | 4 | 12 | 4 | 50 | 4 | Fig1 | ● |
| HM450 D5*15*50L*D6*4F | 5 | 15 | 6 | 50 | 4 | Fig2 | ● |
| HM450 D6*18*50L*D6*4F | 6 | 18 | 6 | 50 | 4 | Fig1 | ● |
| HM450 D8*24*60L*D8*4F | 8 | 24 | 8 | 60 | 4 | Fig1 | ● |
| HM450 D10*30*75L*D10*4F | 10 | 30 | 10 | 75 | 4 | Fig1 | ● |
| HM450 D12*36*75L*D12*4F | 12 | 36 | 12 | 75 | 4 | Fig1 | ● |
| HM450 D14*45*100L*D14*4F | 14 | 45 | 14 | 100 | 4 | Fig1 | ● |
| HM450 D16*50*100L*D16*4F | 16 | 50 | 16 | 100 | 4 | Fig1 | ● |
| HM450 D18*50*100L*D18*4F | 18 | 50 | 18 | 100 | 4 | Fig1 | ● |
| HM450 D20*50*100L*D20*4F | 20 | 50 | 20 | 100 | 4 | Fig1 | ● |
| HM450 D3*12*75L*D4*4F | 3 | 12 | 4 | 75 | 4 | Fig2 | ● |
| HM450 D3*15*100L*D4*4F | 3 | 15 | 4 | 100 | 4 | Fig2 | ● |
| HM450 D4*16*75L*D4*4F | 4 | 16 | 4 | 75 | 4 | Fig1 | ● |
| HM450 D4*20*100L*D4*4F | 4 | 20 | 4 | 100 | 4 | Fig1 | ● |
| HM450 D5*20*75L*D6*4F | 5 | 20 | 6 | 75 | 4 | Fig2 | ● |
| HM450 D5*30*100L*D6*4F | 5 | 30 | 6 | 100 | 4 | Fig2 | ● |
| HM450 D5*35*150L*D6*4F | 5 | 35 | 6 | 150 | 4 | Fig2 | ● |
| HM450 D6*30*100L*D6*4F | 6 | 30 | 6 | 100 | 4 | Fig1 | ● |
| HM450 D6*50*150L*D6*4F | 6 | 50 | 6 | 150 | 4 | Fig1 | ● |
| HM450 D8*35*100L*D8*4F | 8 | 35 | 8 | 100 | 4 | Fig1 | ● |
| HM450 D8*50*150L*D8*4F | 8 | 50 | 8 | 150 | 4 | Fig1 | ● |
| HM450 D10*40*100L*D10*4F | 10 | 40 | 10 | 100 | 4 | Fig1 | ● |
| HM450 D10*60*150L*D10*4F | 10 | 60 | 10 | 150 | 4 | Fig1 | ● |
| HM450 D12*45*100L*D12*4F | 12 | 45 | 12 | 100 | 4 | Fig1 | ● |
| HM450 D12*65*150L*D12*4F | 12 | 65 | 12 | 150 | 4 | Fig1 | ● |
| HM450 D14*70*150L*D14*4F | 14 | 70 | 14 | 150 | 4 | Fig1 | ● |
| HM450 D16*75*150L*D16*4F | 16 | 75 | 16 | 150 | 4 | Fig1 | ● |
| HM450 D20*75*150L*D20*4F | 20 | 75 | 20 | 150 | 4 | Fig1 | ● |
