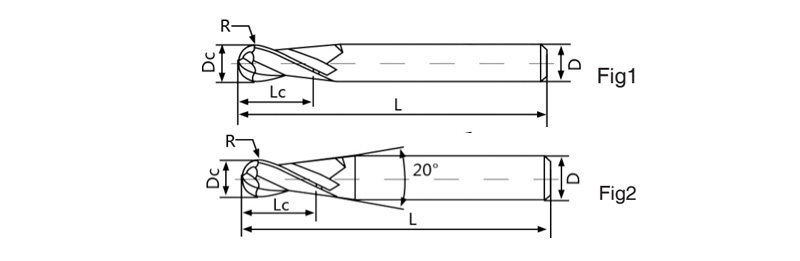

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | ||||
| Dc | R | Lc | D | L | ||||
| HM450 R0.5*2*50L*D4*2T | 1 | 0.5 | 2 | 4 | 50 | 2 | Fig2 | ● |
| HM450 R0.75*3*50L*D4*2T | 1.5 | 0.75 | 3 | 4 | 50 | 2 | Fig2 | ● |
| HM450 R1*4*50L*D4*2T | 2 | 1 | 4 | 4 | 50 | 2 | Fig2 | ● |
| HM450 R1.25*5*50L*D4*2T | 2.5 | 1.25 | 5 | 4 | 50 | 2 | Fig2 | ● |
| HM450 R1.5*6*50L*D4*2T | 3 | 1.5 | 6 | 4 | 50 | 2 | Fig2 | ● |
| HM450 R2*8*50L*D4*2T | 4 | 2 | 8 | 4 | 50 | 2 | Fig1 | ● |
| HM450 R2*8*50L*D6*2T | 4 | 2 | 8 | 6 | 50 | 2 | Fig2 | ● |
| HM450 R2.5*10*50L*D6*2T | 5 | 2.5 | 10 | 6 | 50 | 2 | Fig2 | ● |
| HM450 R3*12*50L*D6*2T | 6 | 3 | 12 | 6 | 50 | 2 | Fig1 | ● |
| HM450 R3.5*12*60L*D8*2T | 7 | 3.5 | 12 | 8 | 60 | 2 | Fig2 | ● |
| HM450 R4*16*60L*D8*2T | 8 | 4 | 16 | 8 | 60 | 2 | Fig1 | ● |
| HM450 R4.5*18*75L*D10*2T | 9 | 4.5 | 18 | 10 | 75 | 2 | Fig2 | ● |
| HM450 R5*20*75L*D10*2T | 10 | 5 | 20 | 10 | 75 | 2 | Fig1 | ● |
| HM450 R6*24*75L*D12*2T | 12 | 6 | 24 | 12 | 75 | 2 | Fig1 | ● |
| HM450 R7*28*75L*D14*2T | 14 | 7 | 28 | 14 | 75 | 2 | Fig1 | ● |
| HM450 R8*32*100L*D16*2T | 16 | 8 | 32 | 16 | 100 | 2 | Fig1 | ● |
| HM450 R9*36*100L*D18*2T | 18 | 9 | 36 | 18 | 100 | 2 | Fig1 | ● |
| HM450 R10*40*100L*D20*2T | 20 | 10 | 40 | 20 | 100 | 2 | Fig1 | ● |
