Home / Product / Threading Inserts / 30 Trapezoidal Thread / 30° Trapezoidal Internal Thread (IR/L-TR)

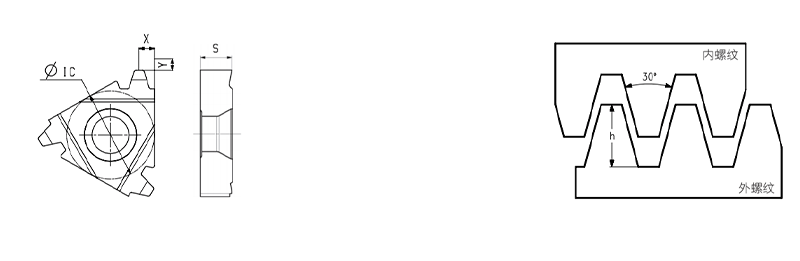

Blade Model | Processing Pitch Range | Blade Size | Coating | |||||||
mm | Number Of Teeth/Inch | IC | S | x | Y | RP9125B | RP1020 | RP1120A | RP1225 | |
11IR/L1.5TR | 1.5 | 6.35 | 3.05 | 0.8 | 0.9 | |||||
16IR/L1.5TR | 1.5 | 9.525 | 3.52 | 1 | 1.1 | ● | ● | |||
16IR/L2.0TR | 2 | 9.525 | 3.52 | 1.1 | 1.3 | ● | ● | |||
16IR/L2.5TR | 2.5 | 9.525 | 3.52 | 1.2 | 1.4 | ● | ● | |||
16IR/L3.0TR | 3 | 9.525 | 3.52 | 1.3 | 1.5 | ● | ● | |||
22IR/L4.0TR | 4 | 12.7 | 4.65 | 1.7 | 1.9 | |||||
22IR/L5.0TR | 5 | 12.7 | 4.65 | 2.1 | 2.5 | |||||
22IR/L6.0TR | 6 | 12.7 | 4.65 | 2.3 | 2.7 | |||||
27IR/L6.0TR | 6 | 15.875 | 6.15 | 2.3 | 2.7 |
● Standing Stock
