Home / Product / Hongrui Solid Carbide Tools / HR700 series for machining hardened steel superhard / HR700 Series for Machining Hardened Steel Superhard (4- flute flattened end mills with long shank)

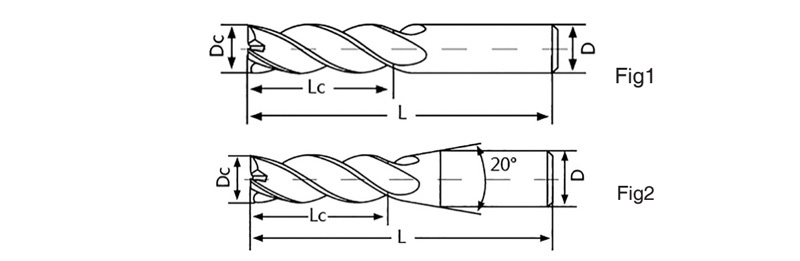

| Type | Basic dimension (mm) | Number of teeth | Figure | Stock | |||
| Dc | Lc | D | L | ||||
| HR700 D3*12*75L*D4*4F | 3 | 12 | 4 | 75 | 4 | Fig2 | ○ |
| HR700 D4*16*75L*D4*4F | 4 | 16 | 4 | 75 | 4 | Fig1 | ○ |
| HR700 D5*25*100L*D6*4F | 5 | 25 | 6 | 100 | 4 | Fig2 | ○ |
| HR700 D6*30*100L*D6*4F | 6 | 30 | 6 | 100 | 4 | Fig1 | ○ |
| HR700 D8*40*100L*D8*4F | 8 | 40 | 8 | 100 | 4 | Fig1 | ○ |
| HR700 D10*45*100L*D10*4F | 10 | 45 | 10 | 100 | 4 | Fig1 | ○ |
| HR700 D12*50*100L*D12*4F | 12 | 50 | 12 | 100 | 4 | Fig1 | ○ |
